TSM-133-01-T-SV-A-P

Headers, Male Pins Overview

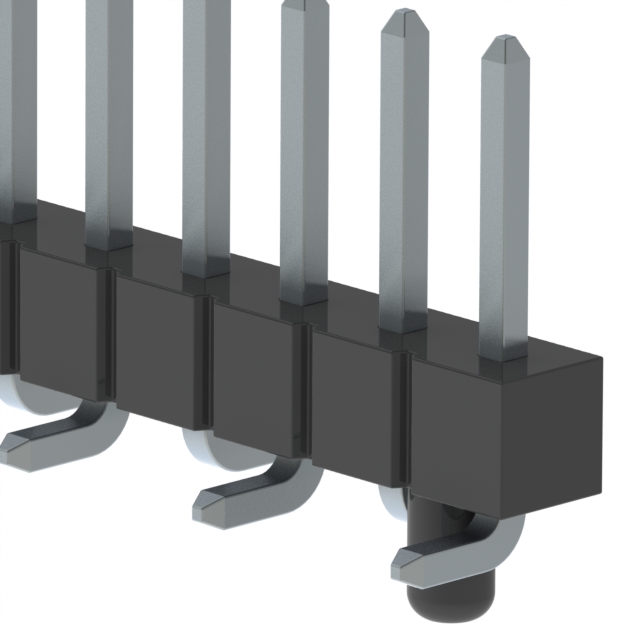

The TSM-133-01-T-SV-A-P is a single-row surface mount header manufactured by Samtec Inc. It features 33 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes phosphor bronze contacts with matte tin plating and liquid crystal polymer insulation rated UL94 V-0. Designed for board-to-board or cable applications, it supports a temperature range of -55°C to 105°C and includes pick-and-place compatible board rails.

Headers, Male Pins Feature Summary

• Surface mount construction with right-angle termination options
• Pick-and-place compatible design with integrated board rails
• Matte tin contact plating for reliable signal transmission
• High-temperature resistant liquid crystal polymer insulation

Headers, Male Pins Applications

• Board-to-board interconnections in high-density electronics
• Automotive electronic control units requiring robust mounting
• Industrial equipment interfaces demanding thermal stability
• Telecommunications hardware utilizing surface mount technology

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official Samtec documentation to ensure correct pin length and plating specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into production workflows. Cross-reference the exact part number with authorized distributors to guarantee authenticity and traceability.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-position surface mount header is required for rigid PCB assembly. The 2.54 mm pitch ensures compatibility with standard through-hole mating connectors. Consider the matte tin finish for cost-effective applications where gold plating is unnecessary. Ensure sufficient board space accommodates the right-angle profile and rail structure.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions from Samtec. The series offers various row configurations and termination styles to support diverse density requirements. The TSM-133 variant specifically addresses needs for moderate pin counts in compact form factors while maintaining high reliability standards for harsh environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TSM series headers with identical 33-position counts and 2.54 mm pitch. Verify mechanical dimensions and pin length compatibility before substitution. Alternative manufacturers may offer similar specs but require rigorous validation of electrical performance and thermal characteristics.
