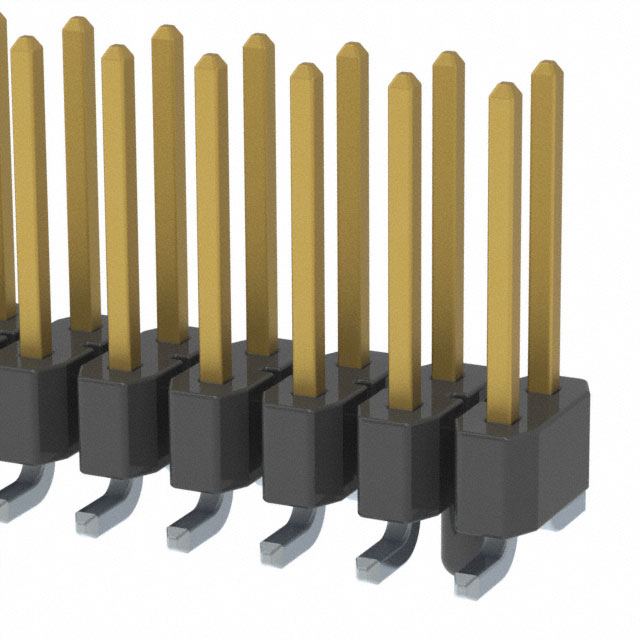

TSM-133-02-L-DV-A

$14.27

Description：CONN HEADER SMD 66POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube,Tube

SKU:706c8440cfcf Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSM-133-02-L-DV-A is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 66POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSM-133-02-L-DV-A

Description：CONN HEADER SMD 66POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube,Tube
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：66
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.320" (8.13mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSM-133-02-L-DV-A

TSM-133-02-L-DV-A

Headers, Male Pins Overview

The TSM-133-02-L-DV-A is a surface mount terminal strip manufactured by Samtec, designed for board-to-board and cable interconnections. This component belongs to the TSM series and features a 2.54 mm (0.1 in) pitch with 66 positions arranged in two rows. It utilizes phosphor bronze contacts with gold plating and liquid crystal polymer insulation. The connector supports a mating pin length of 8.13 mm (0.32 in) and operates within a temperature range of -55°C to +125°C. Rated at 495 VAC, it meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Flexible stacking solution enabling customizable I/O configurations
Surface mount design compatible with automated pick-and-place assembly
Gold-plated phosphor bronze contacts ensure reliable signal transmission

Headers, Male Pins Applications

Board-to-board interconnects
Cable-to-board connections
High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against official Samtec documentation to confirm exact pin count, contact material, and termination style. Ensure compatibility with existing PCB footprints and mating connector specifications before procurement. Confirm moisture sensitivity level and packaging requirements align with manufacturing processes.

Headers, Male Pins Selection Notes

Select this component when a flexible, low-cost header solution is required for high-volume production. The unshrouded design allows for versatile mating options. Verify that the 2.54 mm pitch and 66-position configuration match the system's electrical and mechanical constraints. Consider the straight mounting angle for standard vertical integration.

Headers, Male Pins Part Context

This part is part of the TSM series, which offers flexible stacking solutions for various interconnection needs. The TSM series provides cost-effective options with customizable lengths and contact materials. It is widely used in applications requiring reliable surface mount headers with standardized spacing.
