TSM32-H50CQ33RT-14.7456M-TR

Oscillators Overview

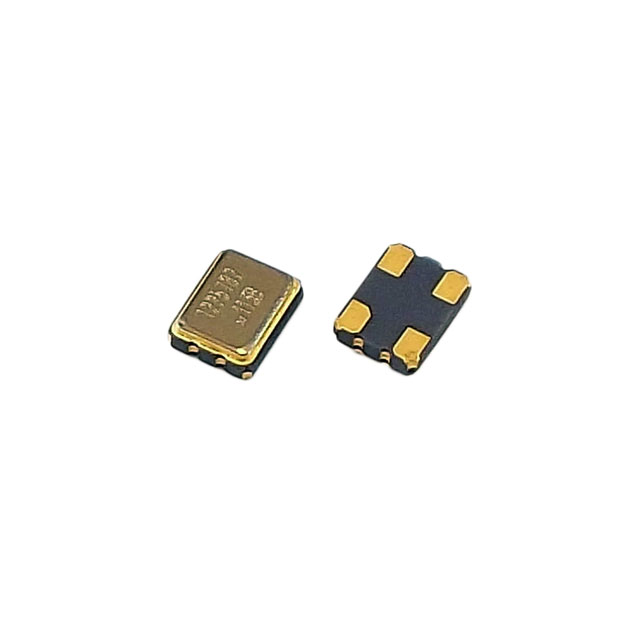

The TSM32-H50CQ33RT-14.7456M-TR is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 14.7456 MHz with an HCMOS output signal. The device requires a 3.3V supply voltage and features enable/disable control functionality. It is housed in a compact 4-SMD, No Lead package with dimensions of 3.20mm x 2.50mm. The unit supports an operating temperature range of -40°C to 85°C and exhibits a frequency stability of ±50ppm.

Oscillators Feature Summary

• Generates a stable 14.7456 MHz clock signal using HCMOS logic levels for digital circuit interfacing
• Integrates enable and disable control pins to manage power consumption and system states
• Utilizes a miniature surface-mount ceramic package designed for automated reflow soldering processes

Oscillators Applications

• High-speed data communication interfaces requiring precise timing references
• Digital signal processing systems needing stable clock sources
• Embedded controller boards utilizing standard CMOS-compatible logic levels

Oscillators Procurement Notes

Verify the complete part number against official manufacturer documentation to ensure correct suffix alignment. Confirm that the 'TR' designation matches the required tape and reel packaging configuration for your assembly line. Cross-reference the specific frequency tolerance and temperature range requirements with the datasheet specifications before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 14.7456 MHz frequency is strictly required for system synchronization. Ensure the design accommodates the 3.3V supply rail and utilizes HCMOS input thresholds. Verify that the physical footprint constraints align with the 3.2mm x 2.5mm package dimensions and that the thermal environment remains within the specified -40°C to 85°C operational window.

Oscillators Part Context

This oscillator belongs to the TSM32 series from Transko Electronics, which provides various frequency options within a standardized miniature form factor. The series supports multiple supply voltages and output logic types, allowing designers to maintain consistent board layouts across different product variants while adjusting electrical parameters as needed.

Oscillators Replacement Considerations

Direct substitutes include other TSM32 series oscillators with identical pinouts and frequencies, such as the TSM32-H50CQ33ST-14.7456M variant, provided the lead type matches the assembly process.
