TSM32-H50CQ33ST-4.9152M

Description：XTAL OSC XO 4.9152MHZ HCMOS SMD
Series：TSM32
Mfr：Transko Electronics, Inc.
Package：Strip

SKU:2a15f808a1fa Category: Oscillators Brand: Transko Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSM32-H50CQ33ST-4.9152M is listed in the Oscillators range at ChipApex. The manufacturer field lists Transko Electronics, Inc.. Its product description is XTAL OSC XO 4.9152MHZ HCMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for TSM32-H50CQ33ST-4.9152M

Description：XTAL OSC XO 4.9152MHZ HCMOS SMD
Series：TSM32
Mfr：Transko Electronics, Inc.
Package：Strip
Base Resonator：Crystal
Type：XO (Standard)
Frequency：4.9152 MHz
Function：Enable/Disable
Output：HCMOS
Voltage - Supply：3.3V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：30mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.047" (1.20mm)
Supplier Device Package：4-VDFN (3.2x2.5)

Oscillators datasheet and documents for TSM32-H50CQ33ST-4.9152M

TSM32-H50CQ33ST-4.9152M

Oscillators Overview

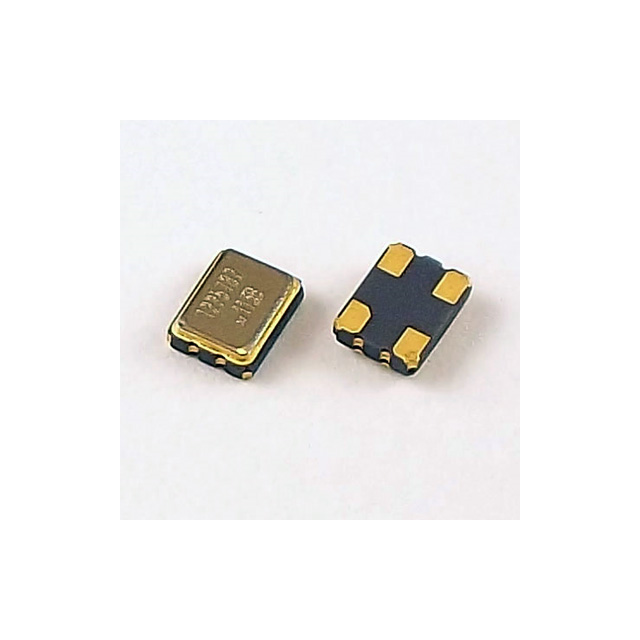

The TSM32-H50CQ33ST-4.9152M is an ultra-miniature surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 4.9152 MHz with HCMOS output logic. The device supports a supply voltage of 3.3V and features enable/disable functionality. It is housed in a compact 4-SMD, No Lead package with dimensions of 3.20mm x 2.50mm x 1.20mm. The unit is rated for an operating temperature range of -40°C to 85°C and has a maximum supply current of 30mA.

Oscillators Feature Summary

Ultra-miniature SMD form factor suitable for space-constrained designs
HCMOS output signal compatibility
Integrated enable/disable control function

Oscillators Applications

Portable wireless devices
Mobile test equipment
Beacons and rescue systems

Oscillators Procurement Notes

Verify the specific suffix codes against official Transko documentation to confirm exact frequency tolerance and temperature grade. Ensure the ordering part number matches the required tape-and-reel packaging configuration if automated assembly is intended. Cross-reference the pinout diagram with the target PCB footprint to prevent mounting errors during integration.

Oscillators Selection Notes

Select this component when a low-profile, high-stability clock source is required for digital circuits operating within the specified temperature range. Consider the 30mA current consumption relative to system power budgets. Verify that the HCMOS output swing aligns with the input requirements of the downstream logic or microcontroller interface.

Oscillators Part Context

This model belongs to the TSM32 series of ultra-miniature CMOS oscillators from Transko Electronics. The series utilizes crystal technology to provide stable clock signals in a small 4-SMD package. It serves as a drop-in replacement for discontinued Epson Toyocom VG-1201CA models, offering fit, form, and functional equivalence for legacy designs requiring miniaturization.
