TSM53-H25HM33ST-25.000M-TR

Oscillators Overview

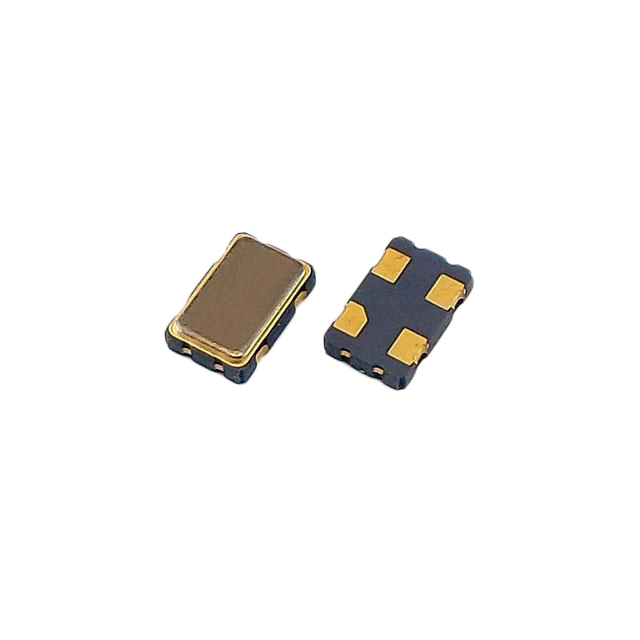

The TSM53-H25HM33ST-25.000M-TR is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc., designed for surface-mount applications. It operates at a nominal frequency of 25.000 MHz with HCMOS output logic levels. The device requires a 3.3V supply voltage and features an enable/disable control function for power management. Packaged in a compact 4-SMD, No Lead (4-VDFN 5.00mm x 5.00mm) footprint, it supports tape and reel delivery for automated assembly processes.

Oscillators Feature Summary

• HCMOS output interface for digital signal compatibility
• Enable/Disable pin functionality for power optimization
• Surface-mount package design for automated PCB assembly

Oscillators Applications

• General-purpose clock generation in embedded systems
• Timing reference for microcontrollers and processors
• Digital communication interface synchronization

Oscillators Procurement Notes

Verify the complete part number including the -TR suffix to ensure receipt of the tape and reel packaging format required for high-volume manufacturing. Confirm that the 3.3V operating voltage aligns with the target system's power rails. Ensure the 4-SMD no-lead package dimensions are compatible with the designated footprint on the printed circuit board layout prior to procurement.

Oscillators Selection Notes

Select this component when a standard frequency stability is sufficient for the application requirements. The HCMOS output is suitable for digital logic interfaces requiring standard voltage levels. Consider the enable/disable feature if dynamic power management is necessary during idle periods. Verify that the physical dimensions of the 4-VDFN package fit within the available space constraints on the circuit board.

Oscillators Part Context

This model belongs to the TSM53 series of surface-mount oscillators from Transko Electronics, Inc. The series offers various frequencies and packages tailored for consumer and industrial electronics. The TSM53 variant specifically utilizes a 5.00mm x 5.00mm footprint, providing a balance between size and performance for general timing applications.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Users should consult manufacturer guidelines or authorized distributors for equivalent components if direct replacement is required.
