TSM75-H00CQ50RT-10.000M

Oscillators Overview

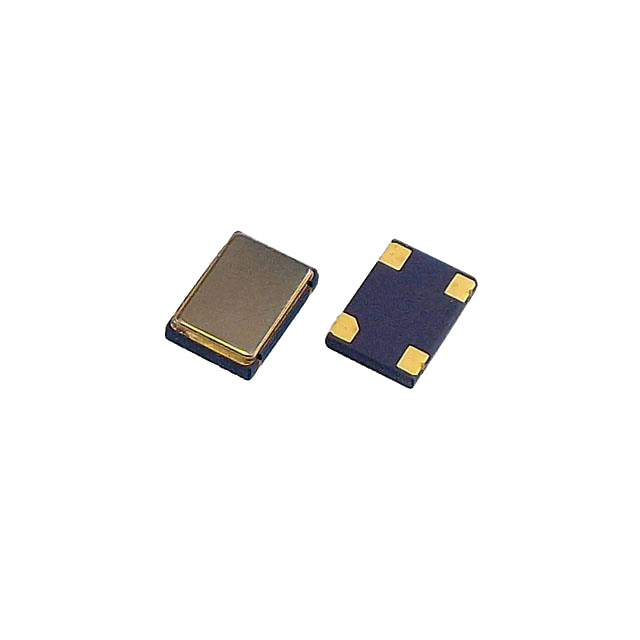

The TSM75-H00CQ50RT-10.000M is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc., designed for precision frequency control in electronic circuits. It operates at a nominal frequency of 10.000 MHz with an HCMOS output signal type. The device features a supply voltage of 5V and supports an enable/disable function for power management. It exhibits a frequency stability of ±100ppm and draws a maximum supply current of 20mA. The component is rated for an operating temperature range of -40°C to 85°C and utilizes a 4-SMD, No Lead mounting type.

Oscillators Feature Summary

• HCMOS output signal type for digital interface compatibility
• Enable/Disable functionality for power management control
• Standard XO design for precision frequency generation

Oscillators Applications

• Fiber Channel systems
• General electronic devices requiring precise timing
• Digital circuit clock sources

Oscillators Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against your system design before procurement. Confirm that the 5V supply voltage aligns with your power architecture. Ensure the 4-SMD package footprint matches your PCB layout constraints. Check RoHS compliance status if required by your manufacturing standards. Validate the operating temperature range suitability for your intended environment.

Oscillators Selection Notes

Select this component when a 10 MHz HCMOS clock source is required with moderate stability. Consider the 5V supply requirement and ensure it fits within your power budget. Evaluate the ±100ppm stability against your system's jitter and timing accuracy needs. Compare the physical dimensions of the 4-SMD package with available board space. Assess the enable/disable feature utility for power-sensitive applications.

Oscillators Part Context

This part belongs to the TSM75 series of surface-mount crystal oscillators from Transko Electronics. The series offers various frequencies and output types, including HCMOS. The TSM75-H00CQ50RT variant specifically denotes the 10 MHz frequency option within this family. These components are designed for compact electronic designs requiring reliable clock signals.

Oscillators Replacement Considerations

Direct substitutes include other 10 MHz HCMOS SMD oscillators with similar pinout and electrical characteristics. Verify compatibility regarding supply voltage, current consumption, and operating temperature range. Cross-reference mechanical dimensions to ensure fitment on existing PCB layouts.
