TSM75-H20FM33SN-62.208M

Oscillators Overview

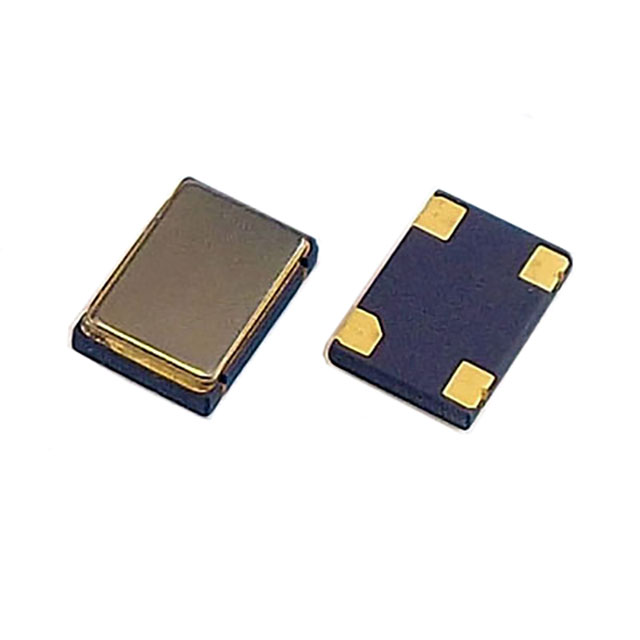

The TSM75-H20FM33SN-62.208M is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 62.208 MHz with a frequency stability of ±20 ppm. The device utilizes HCMOS output logic and requires a supply voltage of 3.3V. It is housed in a compact 4-SMD, No Lead package, specifically a 4-VDFN footprint measuring 3.20mm x 2.50mm. The component supports an enable/disable function and is designed for surface mount installation.

Oscillators Feature Summary

• Generates a precise 62.208 MHz clock signal using HCMOS output levels
• Features low profile 4-SMD no-lead packaging for space-constrained designs
• Includes enable/disable control functionality for power management

Oscillators Applications

• Digital signal processing systems requiring stable clock sources
• Communication equipment utilizing 62.208 MHz frequencies
• Embedded systems with 3.3V logic interfaces

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to ensure compatibility with required frequency tolerance and load conditions. Confirm that the 4-VDFN package dimensions align with the target PCB footprint. Check RoHS compliance status if restricted substances are mandated by the end product regulations. Ensure the supply voltage matches the 3.3V requirement for proper HCMOS operation.

Oscillators Selection Notes

Select this component when a fixed 62.208 MHz frequency is strictly required rather than a programmable range. The HCMOS output is suitable for digital logic interfacing without additional buffering. Consider the ±20 ppm stability specification against system timing requirements. The small form factor makes it appropriate for high-density board layouts where larger packages cannot fit.

Oscillators Part Context

This part belongs to the TSM75 series of surface-mount oscillators from Transko Electronics. The series typically offers various frequency options within a standardized 4-pin SMD envelope. The TSM75 line focuses on providing reliable clock signals for consumer and industrial electronics with consistent performance across temperature ranges.

Oscillators Replacement Considerations

Direct substitutes must match the 62.208 MHz frequency, 3.3V supply, HCMOS output, and 4-SMD package. Cross-reference with other manufacturers offering identical pinouts and electrical characteristics to ensure functional interchangeability.
