TSM75-H50CQ33ST-104.000M-TR

Oscillators Overview

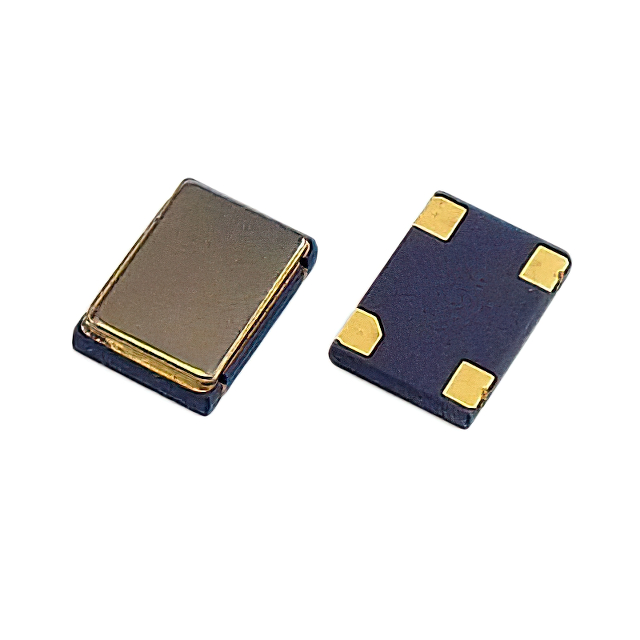

The TSM75-H50CQ33ST-104.000M-TR is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc., operating at a frequency of 104 MHz. It utilizes a crystal base resonator and provides HCMOS output signals. The device functions on a 3.3V supply voltage and includes an enable/disable control feature. It is housed in a 4-SMD, no lead package with a tape and reel (TR) packaging option. The component is currently listed as active.

Oscillators Feature Summary

• Provides standard HCMOS output signals for digital interfacing
• Incorporates an enable/disable function for power management
• Utilizes a crystal base resonator for frequency stability

Oscillators Applications

• General purpose clock signal generation
• Digital system timing references
• Embedded controller clock sources

Oscillators Procurement Notes

Verify the specific frequency suffix matches the required 104 MHz operation. Confirm that the 3.3V supply voltage aligns with the target circuit design. Ensure the 4-SMD no lead package footprint is compatible with the PCB layout. Check for RoHS compliance status if environmental regulations apply to the end product. Validate the enable/disable pin configuration against the system control logic.

Oscillators Selection Notes

Select this component when a stable 104 MHz reference is needed with low profile surface mount requirements. Consider the HCMOS output compatibility with downstream logic levels. Evaluate the enable/disable feature necessity for power-sensitive applications. Compare the 4-SMD package dimensions against available board space constraints. Assess the 3.3V operating voltage against existing power rails.

Oscillators Part Context

This part belongs to the TSM75 series of standard crystal oscillators from Transko Electronics. The series offers various frequencies with consistent electrical characteristics. The TSM75 line focuses on compact SMD packages suitable for modern electronics. It serves as a drop-in replacement for certain discontinued Epson Toyocom models like the SG-636, maintaining fit, form, and function compatibility.

Oscillators Replacement Considerations

Transko suggests the TSP series as a drop-in replacement for the Epson Toyocom SG-636 model, noting fit, form, and function equivalence. Verify mechanical and electrical compatibility before substitution.
