TSM75-H50CQ33ST-7.3728M-TR

$0.77

Description：7.3728MHz oscillator, 5x7mm cera
Series：TSM75
Mfr：Transko Electronics, Inc.
Package：Tape & Reel (TR)

SKU:a9e72a134811 Category: Oscillators Brand: Transko Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSM75-H50CQ33ST-7.3728M-TR is listed in the Oscillators range at ChipApex. The manufacturer field lists Transko Electronics, Inc.. Its product description is 7.3728MHz oscillator, 5x7mm cera. Review the specifications below when checking this part for your BOM.

Oscillators specifications for TSM75-H50CQ33ST-7.3728M-TR

Description：7.3728MHz oscillator, 5x7mm cera
Series：TSM75
Mfr：Transko Electronics, Inc.
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：7.3728 MHz
Function：Enable/Disable
Output：HCMOS
Voltage - Supply：3.3V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：15mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.059" (1.50mm)
Supplier Device Package：-

Oscillators datasheet and documents for TSM75-H50CQ33ST-7.3728M-TR

TSM75-H50CQ33ST-7.3728M-TR

Oscillators Overview

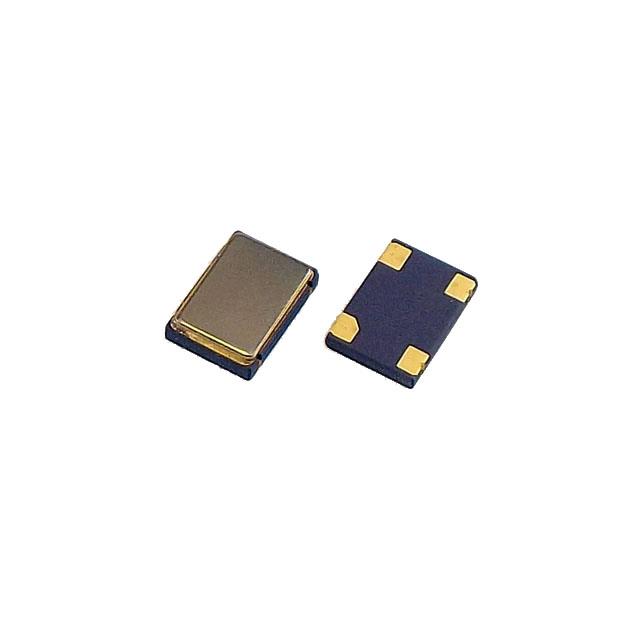

The TSM75-H50CQ33ST-7.3728M-TR is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a frequency of 7.3728 MHz with HCMOS output type. The device supports a supply voltage of 3.3V and features enable/disable functionality. Frequency stability is rated at ±50ppm. It is packaged in a 4-SMD, no lead configuration and supplied in tape and reel format.

Oscillators Feature Summary

HCMOS output signal compatibility
Enable and disable control functionality
Surface mount SMD-4 package design

Oscillators Applications

General electronic timing circuits
Digital communication systems
Microcontroller clock sources

Oscillators Procurement Notes

Verify the specific suffix -TR indicates tape and reel packaging when ordering. Confirm the 3.3V supply requirement matches the target circuit design. Ensure the ±50ppm stability meets system timing accuracy requirements. Check RoHS compliance status for environmental regulations.

Oscillators Selection Notes

Select this component for applications requiring standard HCMOS outputs and 3.3V operation. Consider the ±50ppm stability for moderate precision needs. The 4-SMD package suits automated surface mount assembly processes. Verify temperature range specifications against operational environments.

Oscillators Part Context

This part belongs to the TSM75 series of oscillators from Transko Electronics. The series offers various frequencies and stability options. The TSM75 line provides standard XO solutions for embedded timing applications. It competes with other surface-mount oscillator families.
