TSM75-H50FM33ST-24.704M

Oscillators Overview

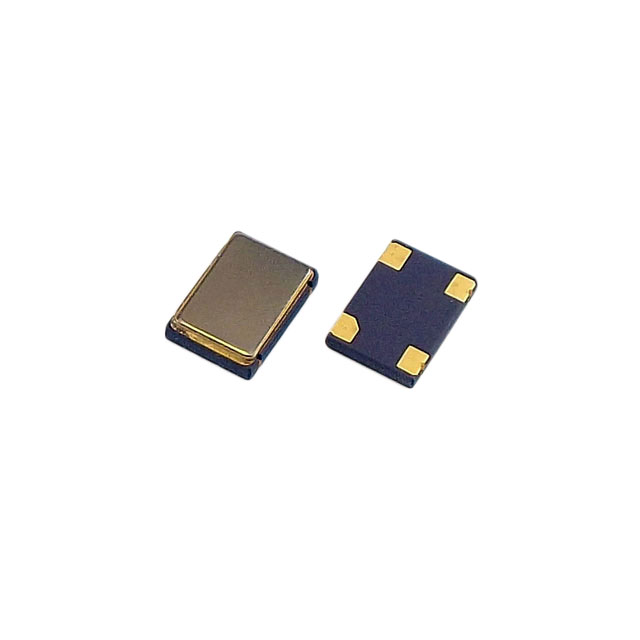

The TSM75-H50FM33ST-24.704M is a crystal oscillator (XO) manufactured by Transko Electronics, Inc., operating at a nominal frequency of 24.704 MHz. It utilizes HCMOS output logic and functions as a standard oscillator with enable/disable capabilities. The device is powered by a 3.3V supply voltage and features a 4-SMD, No Lead package configuration. This component is designed for surface-mount installation, providing a compact solution for timing applications requiring precise clock signals.

Oscillators Feature Summary

• HCMOS output logic for digital interface compatibility
• Enable/Disable functionality for power management control
• Standard XO type utilizing crystal resonator technology

Oscillators Applications

• General purpose clock signal generation in embedded systems
• Timing reference for microcontroller units (MCUs)
• Synchronization circuits in consumer electronics

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact frequency tolerance and load capacitance requirements are met. Confirm that the 4-SMD package dimensions align with the target PCB footprint. Ensure the 3.3V supply voltage matches the system design constraints before integration.

Oscillators Selection Notes

Select this component when a 24.704 MHz HCMOS clock source is required with low profile surface-mount packaging. Consider the enable/disable feature if dynamic power saving is necessary. Verify thermal performance within the specified operating temperature range for the intended application environment.

Oscillators Part Context

This part belongs to the TSM75 series of surface-mount oscillators from Transko Electronics. The series offers various frequencies and packages, with this specific model providing a 24.704 MHz output. It is distinct from other series like TSM32 or TSM75 variants with different output types or voltages.

Oscillators Replacement Considerations

Direct substitutes must match the 24.704 MHz frequency, HCMOS output, 3.3V operation, and 4-SMD package. Cross-reference with Transko's current product list for updated revisions or equivalent parts from other manufacturers ensuring identical pinout and electrical specifications.
