TSMV-H20HM50ST2C-30.000M

Oscillators Overview

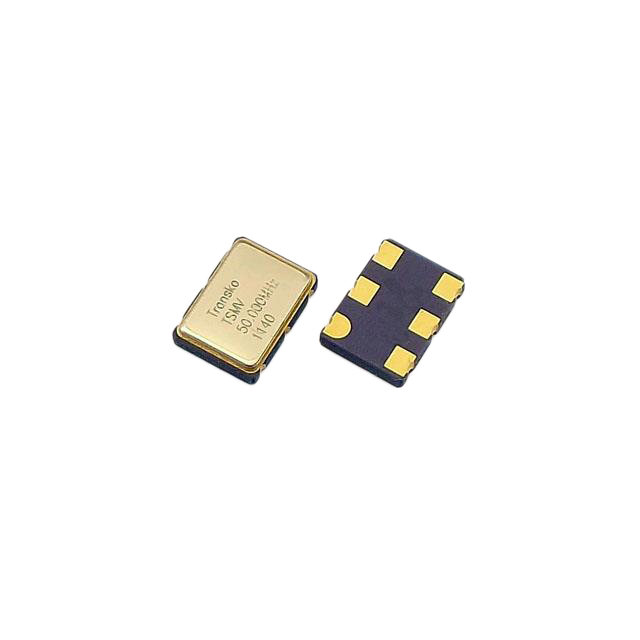

The TSMV-H20HM50ST2C-30.000M is a standard crystal oscillator manufactured by Transko Electronics, Inc., operating at a frequency of 30 MHz. It utilizes HCMOS output logic and requires a 5V supply voltage. The device features an enable/disable control function for power management. It is housed in a compact 6-SMD, no lead package with dimensions of 7.0 x 5.0 x 2.0 mm. The unit is designed for commercial temperature ranges and complies with RoHS standards.

Oscillators Feature Summary

• HCMOS output signal compatibility
• Integrated enable and disable control functionality
• Standard ceramic SMD construction

Oscillators Applications

• General purpose clock generation
• Digital circuit timing references
• Embedded system synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix to confirm the exact frequency tolerance and load capacitance requirements. Ensure the 5V supply voltage aligns with the target system design. Confirm the 6-SMD package footprint matches the PCB layout constraints. Check for RoHS compliance documentation if required by regulatory standards.

Oscillators Selection Notes

Select this component when a 30 MHz HCMOS clock source is required with active power control capabilities. The 5V supply requirement distinguishes it from lower voltage CMOS alternatives. The standard size offers a balance between performance and board space utilization compared to ultra-miniature options.

Oscillators Part Context

This part belongs to the TSMV series of standard ceramic surface-mount oscillators from Transko Electronics. The series includes various frequencies and output types, typically ranging from 1 MHz to 80 MHz. The TSMV designation indicates a standard form factor suitable for general electronic applications requiring reliable clock signals.

Oscillators Replacement Considerations

Direct substitutes must match the 30 MHz frequency, HCMOS output, and 5V supply voltage. Verify that alternative components support the same enable/disable pin configuration. Package dimensions should be compatible with existing footprints. Cross-reference with other Transko models or industry-standard equivalents if availability is constrained.
