TSMV-H50HM33ST2C-74.250M

Oscillators Overview

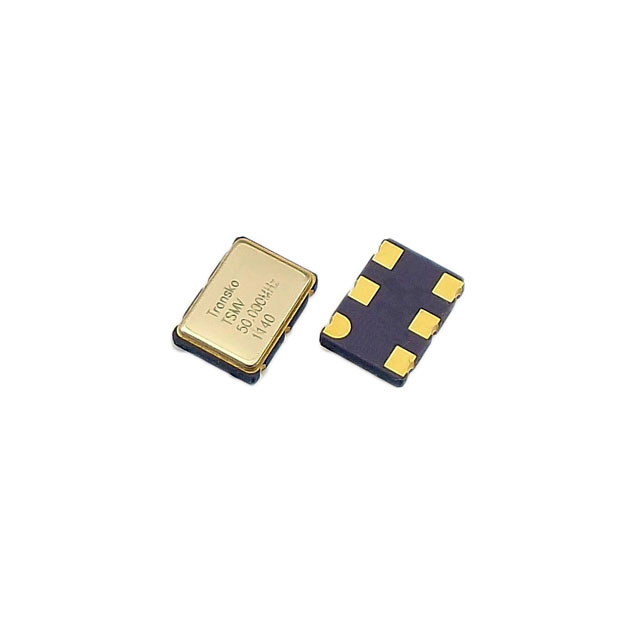

The TSMV-H50HM33ST2C-74.250M is a Voltage Controlled Crystal Oscillator (VCXO) manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 74.25 MHz and utilizes HCMOS output logic levels. The device is designed for surface mount applications, housed in a compact 6-SMD, No Lead package with dimensions of 7.0 x 5.0 x 2.0 mm. It supports a supply voltage of 3.3V and includes an enable/disable control function. The component is lead-free and RoHS compliant, suitable for standard ceramic SMD mounting requirements.

Oscillators Feature Summary

• Voltage controlled crystal oscillator architecture providing frequency tunability
• HCMOS output interface for digital signal compatibility
• Integrated enable and disable control functionality
• Compact 6-pin surface mount package design

Oscillators Applications

• Clock generation systems requiring frequency adjustment
• Telecommunications equipment utilizing VCXO standards
• Digital circuits needing precise timing references

Oscillators Procurement Notes

Verify the specific suffix codes against official Transko documentation to confirm electrical characteristics and pinout configuration. Ensure that the 3.3V supply requirement and HCMOS output levels match the target circuit design specifications before procurement. Confirm RoHS compliance status through current manufacturer declarations.

Oscillators Selection Notes

Select this component when a voltage-controlled frequency reference is required within a 74.25 MHz application. The HCMOS output ensures direct interfacing with digital logic families. Consider the physical footprint constraints of the 7.0 x 5.0 x 2.0 mm package during PCB layout planning.

Oscillators Part Context

This part belongs to the TSMV series of VCXOs from Transko Electronics. The series offers various frequency options and packaging configurations. The TSMV-H50HM33ST2C variant specifically denotes the 74.25 MHz frequency, 3.3V operation, and standard ceramic SMD construction.

Oscillators Replacement Considerations

Cross-reference with other TSMV series parts for different frequencies or supply voltages. Verify pin compatibility and electrical parameters before substituting with generic VCXO components.
