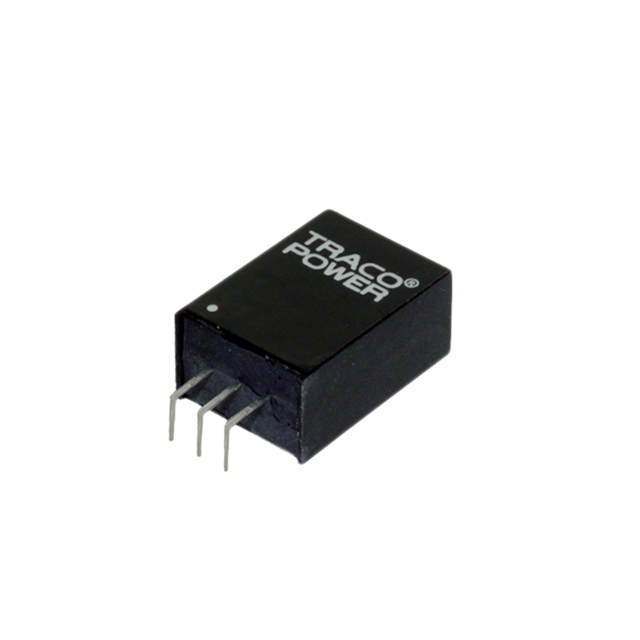

TSN 1-2480A

TSN 1-2480A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER -8V 8W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TSN 1-2480A

• Description：DC DC CONVERTER -8V 8W
• Series：TSN 1
• Mfr：Traco Power
• Package：Tube
• Type：Linear Regulator Replacement
• Number of Outputs：1
• Voltage - Input (Min)：-10.5V
• Voltage - Input (Max)：-32V
• Voltage - Output 1：-8V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：8 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：94%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.65" L x 0.46" W x 0.30" H (16.5mm x 11.7mm x 7.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
