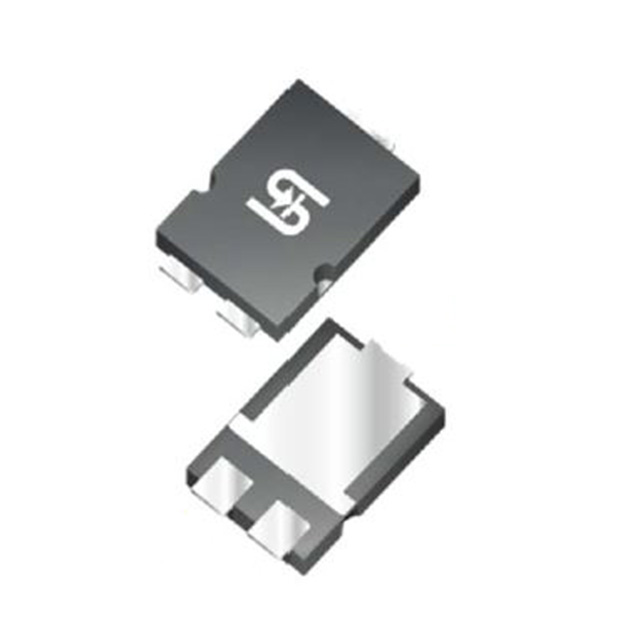

TSPB20U80S

$1.74

Description：DIODE SCHOTTKY 80V 20A SMPC4.0
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:dd1c93d6d7d6 Category: Single Diodes Brand: Taiwan Semiconductor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSPB20U80S is listed in the Single Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE SCHOTTKY 80V 20A SMPC4.0. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for TSPB20U80S

Description：DIODE SCHOTTKY 80V 20A SMPC4.0
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：80 V
Current - Average Rectified (Io)：20A
Voltage - Forward (Vf) (Max) @ If：640 mV @ 20 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：300 µA @ 80 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：TO-277, 3-PowerDFN
Supplier Device Package：SMPC4.0
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for TSPB20U80S

TSPB20U80S

Single Diodes Overview

The TSPB20U80S is a trench Schottky rectifier manufactured by Taiwan Semiconductor. It features a dual common anode configuration housed in an SMPC4.0-3 surface-mount package. The device supports a continuous forward current of 20 A and a repetitive reverse voltage of 80 V. Key electrical parameters include a maximum forward voltage of 0.56 V, a peak forward surge current of 200 A, and a reverse leakage current of 35 uA. It operates within a temperature range of -55 C to +150 C junction temperature.

Single Diodes Feature Summary

Utilizes patented trench Schottky technology for high efficiency
Provides excellent high-temperature stability
Features low forward voltage to reduce power loss
Offers high forward surge capability

Single Diodes Applications

High frequency miniature switched mode power supplies
Adapters
Lighting systems
On-board DC/DC converters

Single Diodes Procurement Notes

Verify the component authenticity against official Taiwan Semiconductor documentation. Confirm the specific suffix 'S2G' indicates halogen-free green compound compliance per IEC 61249-2-21. Ensure the SMPC4.0-3 package matches the design footprint. Check RoHS Directive 2011/65/EU compliance status for the specific manufacturing batch.

Single Diodes Selection Notes

Select this component for designs requiring a dual common anode Schottky rectifier with high current handling. The 80 V rating suits low-voltage DC/DC conversion applications. The SMD/SMT installation style facilitates automated placement. Consider the 0.56 V forward voltage drop for thermal management requirements in compact power supply designs.

Single Diodes Part Context

This part belongs to the Trench Schottky series from Taiwan Semiconductor. It is designed specifically for high-frequency applications where low power loss and high efficiency are critical. The dual common anode structure allows for efficient rectification in bridge or synchronous configurations within small form-factor electronics.
