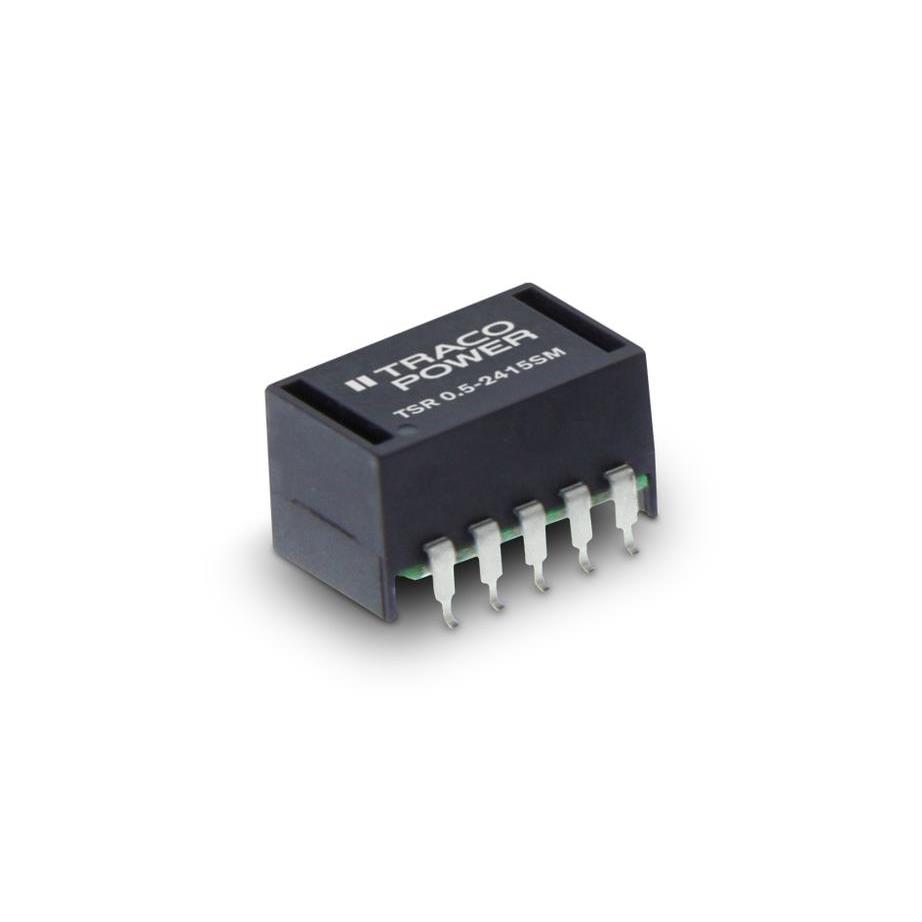

TSR 0.5-2490SM

TSR 0.5-2490SM is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 9V 4.5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TSR 0.5-2490SM

• Description：DC DC CONVERTER 9V 4.5W
• Series：TSR 0.5SM
• Mfr：Traco Power
• Package：Tube
• Type：Linear Regulator Replacement
• Number of Outputs：1
• Voltage - Input (Min)：11V
• Voltage - Input (Max)：32V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA
• Power (Watts)：4.5 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OTP, SCP
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：96%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module
• Size / Dimension：0.60" L x 0.38" W x 0.36" H (15.3mm x 9.6mm x 9.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TSR 0.5-2490SM
