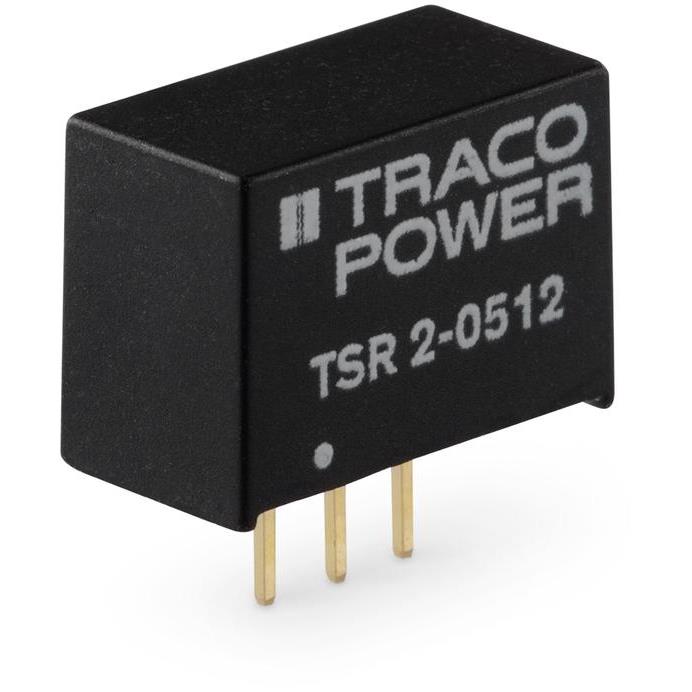

TSR 2-24120

TSR 2-24120 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 12V 24W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TSR 2-24120

• Description：DC DC CONVERTER 12V 24W
• Series：TSR 2
• Mfr：Traco Power
• Package：Tube
• Type：Linear Regulator Replacement
• Number of Outputs：1
• Voltage - Input (Min)：15V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：24 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：OCP, SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：95%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TSR 2-24120
