TSS-107-01-G-D

Headers, Male Pins Overview

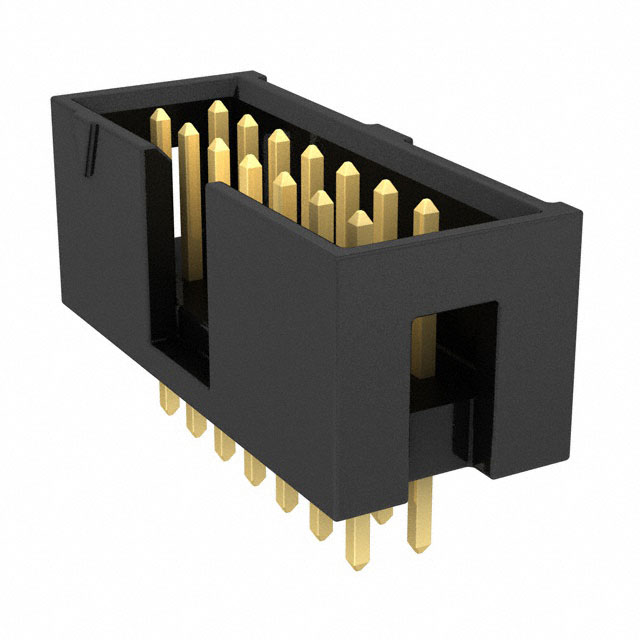

The TSS-107-01-G-D is a Flex Stack pin header manufactured by Samtec Inc. It features a 2-row, 14-position configuration with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, this connector utilizes gold-plated phosphor bronze contacts and a black polybutylene terephthalate (PBT) insulation body rated UL 94 V-0. The assembly includes a four-wall shroud and keying slots for polarization. Operating temperatures range from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Flex Stack design with integrated four-wall shrouding
• Keyed polarization system for secure mating alignment
• Gold-plated phosphor bronze contact construction
• Through-hole termination with right-angle orientation

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-density electronic assemblies requiring polarized headers

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Samtec documentation to confirm exact shroud height and lead length variations. Ensure the selected variant matches the required PCB stack-up dimensions and mating socket specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to final procurement authorization.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54mm pitch male header with full shrouding and mechanical keying is required. The TSS series provides reliable board-to-board connectivity with robust retention forces. Consider the specific shroud height and tail length options available within the product family to match the target application's spatial constraints.

Headers, Male Pins Part Context

This part belongs to the Samtec Flex Stack TSS series of low-profile pin headers. The series offers various shroud heights and tail lengths to accommodate different board thicknesses. The TSS-107-01-G-D specifically denotes a 14-position, double-row connector with standard shrouding and gold plating.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TSS variants with matching 14-position counts and 2.54mm pitch. Verify that alternative parts maintain identical shroud geometry and keying slot positions to ensure mechanical compatibility with existing mating sockets.
