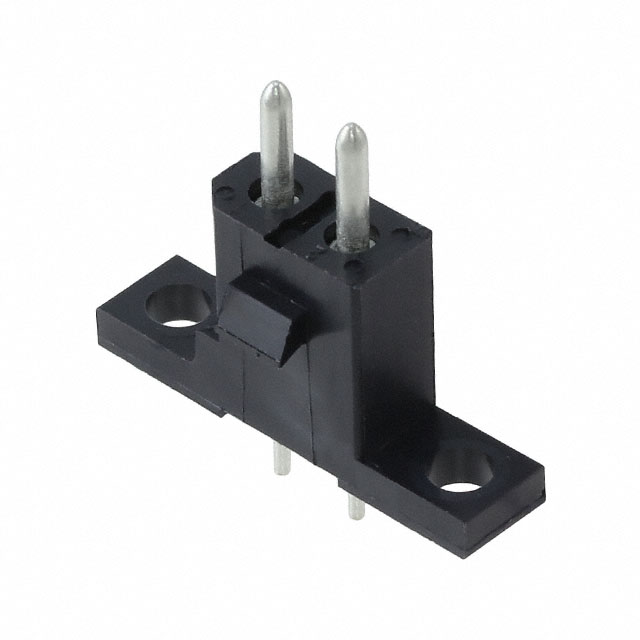

TST02RB01T is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists ITT Cannon, LLC. Its product description is CONN HEADER VERT 2POS 5.08MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for TST02RB01T
- Description：CONN HEADER VERT 2POS 5.08MM
- Series：Trident Rectangular
- Mfr：ITT Cannon, LLC
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Male Pin
- Pitch - Mating：0.200" (5.08mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.224" (5.70mm)
- Overall Contact Length：-
- Insulation Height：0.531" (13.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyamide (PA), Nylon
- Features：Mounting Flange
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：13A
- Voltage Rating：250V
Headers, Male Pins datasheet and documents for TST02RB01T
Headers, Male Pins Overview
The TST02RB01T is a rectangular power connector from the Trident Snap Together series manufactured by ITT Cannon, LLC. It features a through-hole PCB mount configuration with two positions and pin contacts. The connector has a pitch of 5.08 mm (0.200 inches) and is rated for up to 13 A current and 250 V AC voltage.
Headers, Male Pins Feature Summary
- Snap-together design for low installed cost
- Through-hole mounting for printed circuit boards
- Rated for high current and voltage applications
Headers, Male Pins Applications
- Industrial control systems
- Power distribution circuits
- General electronic equipment
Headers, Male Pins Procurement Notes
Verify the specific contact type and plating requirements against the official ITT Cannon datasheet before procurement. Ensure the selected variant matches the required current rating and environmental conditions for the intended application.
Headers, Male Pins Selection Notes
Select this component when a robust, snap-together rectangular connector is needed for PCB power connections. Consider the 5.08 mm pitch and through-hole mounting style as primary selection criteria for compatibility with existing board layouts.
Headers, Male Pins Part Context
This part belongs to the Trident Snap Together series, which provides low-cost interconnect solutions. The series is designed for applications requiring reliable power transmission with simplified assembly processes due to the snap-together feature.
Headers, Male Pins Replacement Considerations
Consult official ITT Cannon documentation for verified substitute part numbers. Do not assume cross-compatibility with other rectangular connector series without verifying mechanical and electrical specifications.
Headers, Male Pins FAQ
What is the maximum current rating for the TST02RB01T?
The connector is rated for up to 13 A.
What is the contact spacing of this connector?
The contact spacing is 5.08 mm (0.200 inches).
