TST03RD01T

Headers, Male Pins Overview

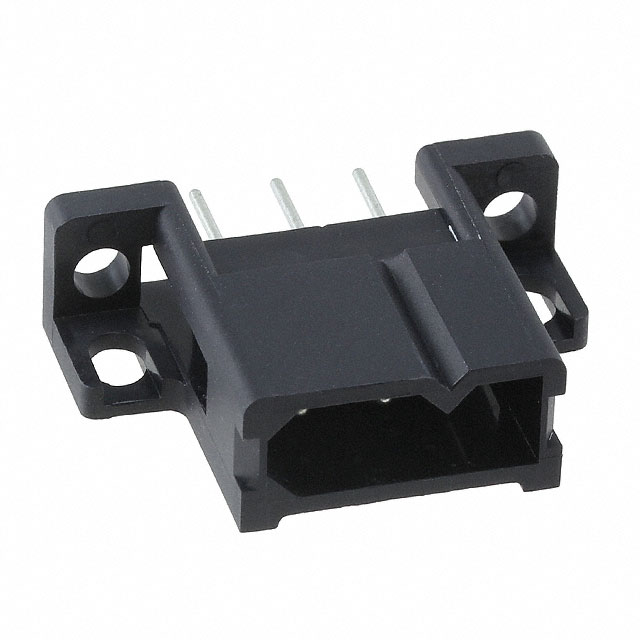

The ITT Cannon TST03RD01T is a Trident series PCB pin header designed for wire-to-board connections. It features three male contacts arranged in a single row with a 5.08 mm pitch. The connector utilizes through-hole straight mounting and includes a shrouded nylon housing. Electrical specifications include a rated voltage of 250V and a current capacity of 10A. Tin-plated terminals ensure reliable soldering, while the unit operates within a temperature range of -55°C to 105°C.

Headers, Male Pins Feature Summary

• Shrouded design provides alignment and protection for wire-to-board mating
• Through-hole straight termination ensures secure PCB attachment
• Tin-plated contacts offer corrosion resistance and solderability

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics assemblies
• General purpose circuit board wiring

Headers, Male Pins Procurement Notes

Verify the manufacturer part number TST03RD01T against official ITT Cannon documentation to confirm authenticity. Ensure the specific order suffix matches the required configuration. Check for recent product change notifications or obsolescence notices before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a 5.08 mm pitch and 3-position layout are required. Confirm that the 10A current rating and 250V voltage limit meet circuit demands. Verify that the through-hole straight form factor fits the mechanical constraints of the target printed circuit board assembly.

Headers, Male Pins Part Context

This component belongs to the Trident series by ITT Cannon, which focuses on high-reliability interconnect solutions. The series supports various contact counts and pitches, serving markets such as defense, industrial, and transportation. The TST03RD01T represents a standard vertical header option within this broader product family.

Headers, Male Pins Replacement Considerations

Consult official ITT Cannon substitution guides for verified alternatives. Generic equivalents may not match the precise 5.08 mm pitch or shrouding requirements. Cross-reference dimensions and electrical ratings carefully before considering any substitute part numbers.
