TST03RE01T

Headers, Male Pins Overview

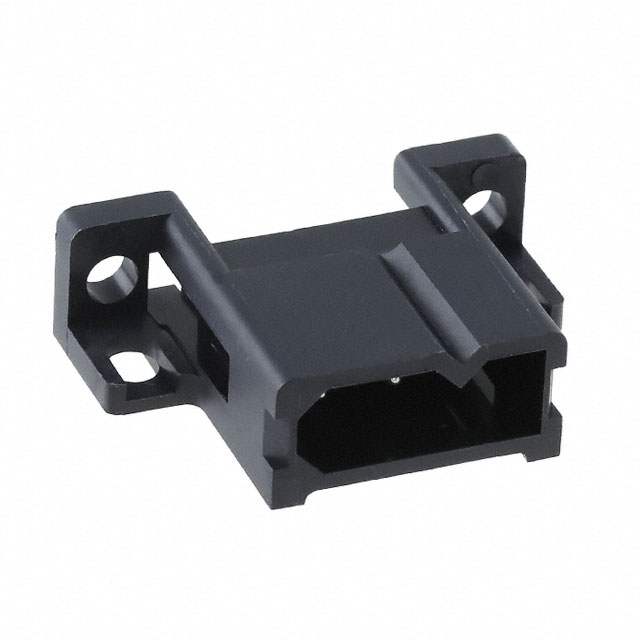

The TST03RE01T is a male pin header connector manufactured by ITT Cannon, LLC. It features a right-angle through-hole mounting configuration with three positions. The contact spacing is specified as 0.200 inches (5.08mm). This component is designed for PCB board-level interconnections.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact circuit board layout and space-constrained designs.
• Through-hole mounting method ensures secure mechanical attachment to printed circuit boards.

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official ITT Cannon datasheet to confirm exact contact plating, housing material, and termination style. Ensure the selected variant matches the required current rating and voltage specifications for the target application environment. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and lead times before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for three-wire circuits. The 5.08mm pitch accommodates standard wire gauges commonly used in industrial and commercial applications. Evaluate the mechanical stress on the PCB traces due to the right-angle form factor during vibration testing.

Headers, Male Pins Part Context

This part belongs to the ITT Cannon Micro Connector Series, which provides microminiature interconnect solutions. The series is engineered for high reliability in harsh environments, utilizing proprietary contact systems. ITT Cannon serves diverse markets including aerospace, defense, and transportation with these robust interconnect technologies.

Headers, Male Pins Replacement Considerations

Consult ITT Cannon official documentation for direct cross-references or approved substitute part numbers. Verify that any alternative component matches the 3-position count, 5.08mm pitch, and right-angle through-hole configuration to ensure mechanical and electrical compatibility.
