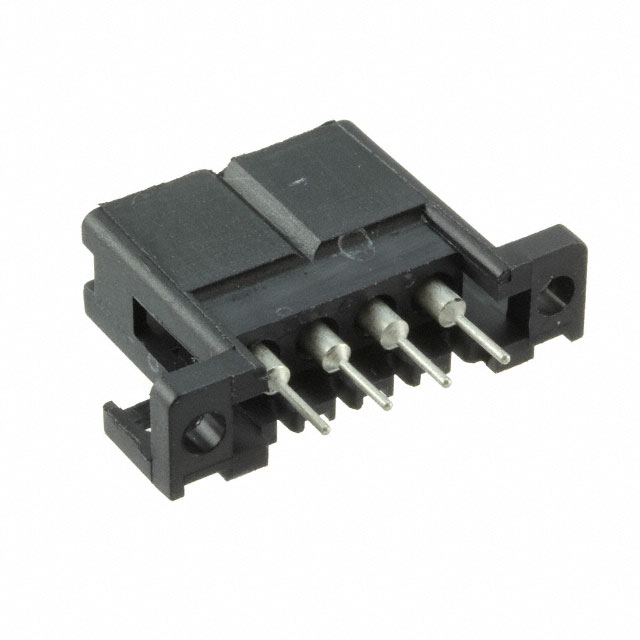

TST04RD01T is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists ITT Cannon, LLC. Its product description is CONN HEADER VERT 4POS 5.08MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for TST04RD01T
- Description：CONN HEADER VERT 4POS 5.08MM
- Series：Trident Slimline
- Mfr：ITT Cannon, LLC
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Male Pin
- Pitch - Mating：0.200" (5.08mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.185" (4.70mm)
- Overall Contact Length：-
- Insulation Height：0.911" (23.15mm)
- Contact Shape：Circular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyamide (PA), Nylon
- Features：Mounting Flange
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：10A
- Voltage Rating：250V
Headers, Male Pins datasheet and documents for TST04RD01T
Headers, Male Pins Overview
The TST04RD01T is a 4-position, single-row PCB header from the Trident series by ITT Cannon. It features a 5.08 mm pitch and through-hole straight mounting configuration for wire-to-board connections. Rated for 250 V AC and 10 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from black nylon with a UL94 V-0 flammability rating.
Headers, Male Pins Feature Summary
- Snap-together design facilitates low installed cost assembly
- Robust nylon insulation ensures high dielectric strength
- Straight through-hole termination secures PCB attachment
Headers, Male Pins Applications
- Automotive electrical systems
- Industrial control panels
- General-purpose interconnects
Headers, Male Pins Procurement Notes
Verify the specific ordering suffix matches the required contact plating and housing color. Confirm that the pin count aligns with the circuit design requirements. Ensure the through-hole footprint on the PCB corresponds to the 5.08 mm pitch specification. Check compliance documentation for UL94 V-0 rating if flame resistance is critical for the application environment.
Headers, Male Pins Selection Notes
Select this component when a reliable, snap-together header is needed for moderate current applications. The 5.08 mm pitch provides adequate spacing for safety clearance. Consider the operating temperature range to ensure compatibility with the expected environmental conditions. Verify mechanical stability requirements against the straight mounting style.
Headers, Male Pins Part Context
This part belongs to the Trident TST series, designed for efficient assembly in various electronic systems. The series offers standardized dimensions and reliable performance for general interconnect needs. ITT Cannon manufactures these connectors to meet rigorous quality standards for durability and electrical performance.
Headers, Male Pins Replacement Considerations
Consult official ITT Cannon substitution guides for verified equivalents. Generic headers may not match the snap-together mechanism or UL94 V-0 rating. Verify dimensional compatibility before replacing.
Headers, Male Pins FAQ
What is the maximum current rating?
The connector is rated for 10 A.
Is the connector suitable for high-vibration environments?
Yes, the Trident series is designed for robust performance in demanding conditions.
