TST06RB01Z

Headers, Male Pins Overview

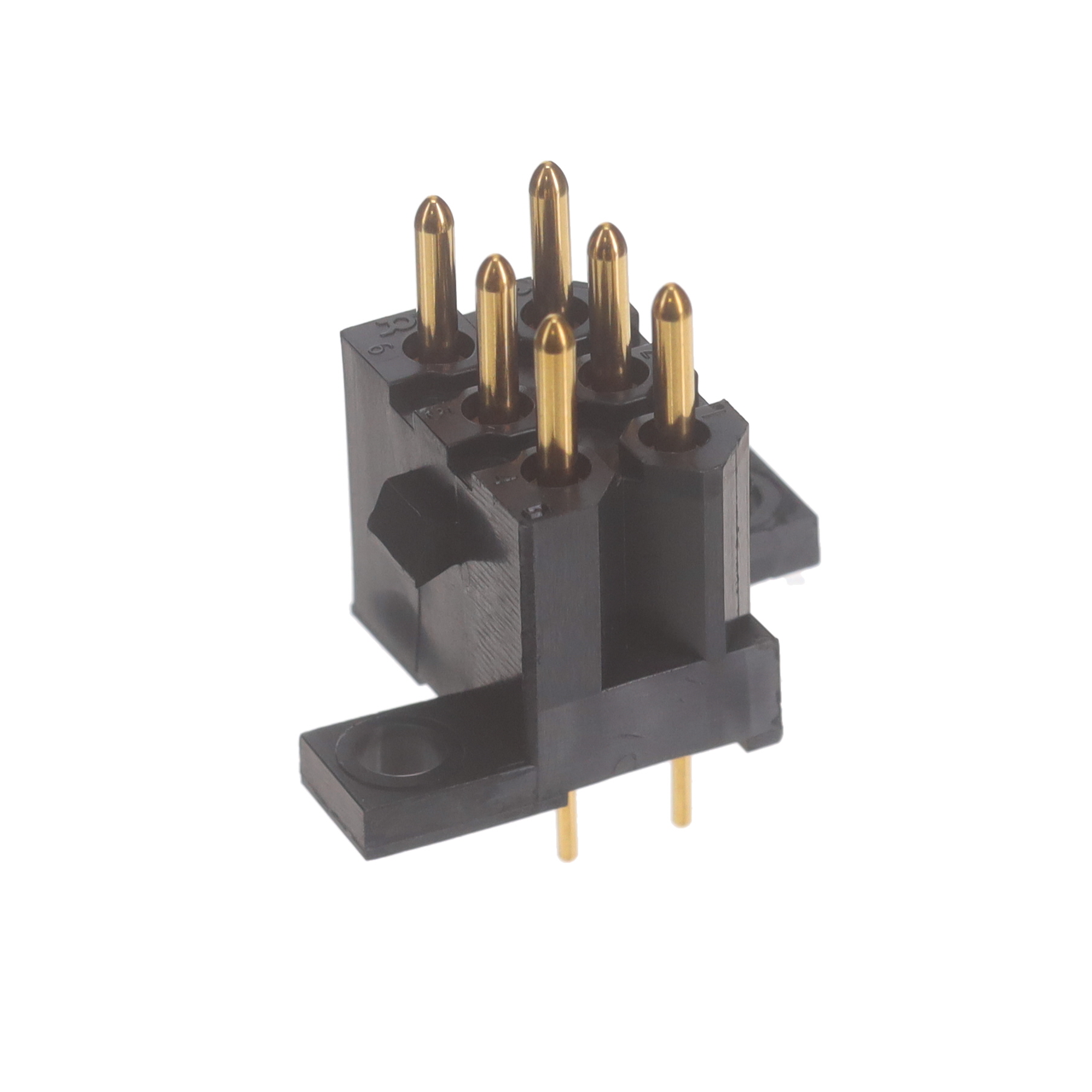

The ITT Cannon TST06RB01Z is a rectangular header connector from the Trident Snap Together series. It features 6 positions with a 5.08 mm (0.200 inch) pitch, designed for through-hole mounting on printed circuit boards. The connector supports up to 13 A current and 250 V AC voltage ratings. Constructed with a nylon housing and tin-plated female contacts, it operates within a temperature range of -55°C to 105°C. This line-to-board system utilizes straight orientation and solder termination for reliable electrical interconnection in industrial applications.

Headers, Male Pins Feature Summary

• Snap-together modular design allows for efficient assembly and configuration flexibility
• Through-hole installation ensures secure mechanical attachment to PCBs
• Tin-plated female contacts provide corrosion resistance and reliable conductivity

Headers, Male Pins Applications

• Industrial control panels
• General purpose electronic equipment
• Consumer appliance internal wiring

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official ITT Cannon documentation to confirm contact type and housing color variations. Ensure compatibility with mating headers regarding pitch and row configuration. Cross-reference environmental ratings such as operating temperature and voltage limits with application requirements before procurement to prevent performance issues.

Headers, Male Pins Selection Notes

Select this component when a low-profile, cost-effective solution for moderate current applications is required. Consider the snap-together feature if space optimization during assembly is critical. Verify that the 5.08 mm pitch aligns with existing board layout constraints. Confirm that the through-hole termination method matches the manufacturing process capabilities of the target production line.

Headers, Male Pins Part Context

This connector belongs to the Trident Snap Together family, which emphasizes ease of use and reduced installation costs. The series is engineered for general-purpose interconnect needs where high reliability is balanced with economic efficiency. It serves as a standard solution for connecting wires to PCBs in non-aerospace or non-military grade environments.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When replacing, ensure the new component matches the 6-position count, 5.08 mm pitch, and through-hole mounting style. Verify that the mating interface dimensions and electrical ratings are identical to maintain system integrity.
