TST09RE01T

Headers, Male Pins Overview

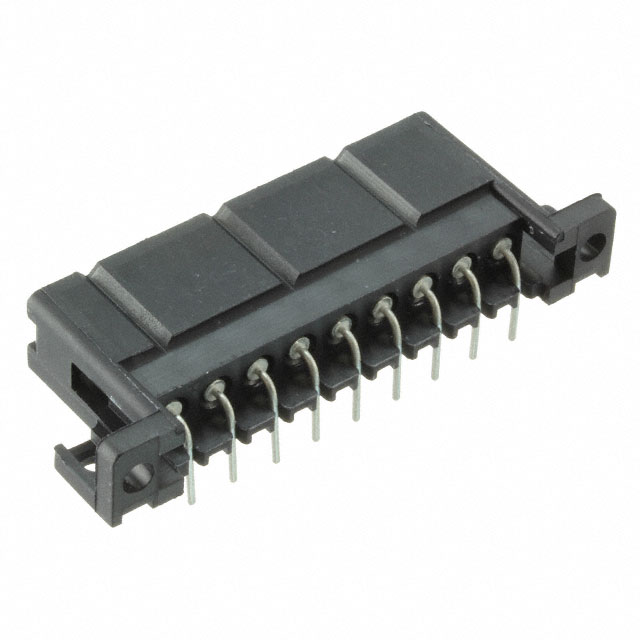

The TST09RE01T is a board-to-cable connector from the Trident Slimline series, manufactured by ITT Cannon. It features a male configuration with nine contacts arranged in a single row. The component utilizes right-angle mounting and employs solder terminals for electrical connection. Designed for harsh environments, it incorporates shrouding with four walls to protect contacts. The unit includes a mounting flange for secure installation.

Headers, Male Pins Feature Summary

• Shrouded design with four-wall protection
• Right-angle orientation for space-efficient layout
• Solder terminal construction for PCB attachment
• Integrated mounting flange for stability

Headers, Male Pins Applications

• Board-to-cable interconnects
• Harsh environment industrial systems
• Heavy vehicle electronics
• Off-highway equipment control units

Headers, Male Pins Procurement Notes

Verify the specific contact plating and mating cycle ratings against the official datasheet before integration. Confirm that the right-angle footprint matches the target PCB layout. Ensure the shrouding height accommodates the connected cable assembly without interference. Cross-reference the series designation to confirm compatibility with existing Trident Slimline components.

Headers, Male Pins Selection Notes

Select this model when a compact, high-reliability solution is required for board-to-cable connections. The Trident Slimline series offers robust performance in challenging conditions. Consider the right-angle form factor for constrained vertical spaces. Evaluate the need for shrouding to prevent accidental contact exposure during maintenance or operation.

Headers, Male Pins Part Context

This component belongs to the Trident Slimline series, designed for demanding applications. ITT Cannon engineers these connectors to withstand vibration, shock, and environmental contaminants. The series supports various contact arrangements and termination styles. It serves markets requiring durable interconnect solutions for heavy machinery and transportation.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify pinout compatibility and mechanical dimensions before swapping. Ensure the replacement maintains the same shrouding and mounting requirements. Check for any changes in material specifications or environmental ratings.
