TST10RD01T

Headers, Male Pins Overview

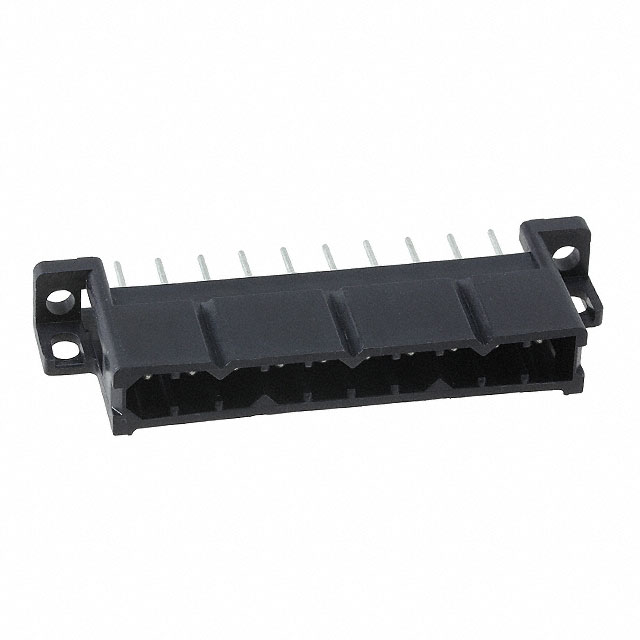

The TST10RD01T is a PCB header connector from the Trident series by ITT Cannon. It features a single row of ten male pins with a 5.08 mm (0.200 inch) pitch. Designed for through-hole mounting, this straight connector supports a current rating of 10 A and a voltage rating of 250 V AC. The housing is constructed from nylon, providing mechanical stability for board-to-wire applications.

Headers, Male Pins Feature Summary

• Snap-together design for low installed cost
• Through-hole termination for secure PCB attachment
• Tin-plated contacts for reliable conductivity

Headers, Male Pins Applications

• Industrial control systems
• Commercial avionics
• General electronic equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official ITT Cannon datasheet to ensure compatibility with required contact plating and housing material specifications. Confirm that the through-hole footprint matches the target PCB design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 5.08 mm pitch is required for high-current DC or low-voltage AC circuits up to 10 A. Ensure the application environment does not exceed the thermal limits of the nylon housing and tin-plated contacts defined in the manufacturer's technical documentation.

Headers, Male Pins Part Context

This part belongs to the Trident Snap Together (TST) series, which offers rectangular connectors rated for up to 13 A and 250 V AC. The series is engineered for commercial aviation, defense, industrial, and transportation markets, emphasizing reliability and ease of assembly in harsh environments.

Headers, Male Pins Replacement Considerations

Consult the official ITT Cannon cross-reference guide for verified substitute part numbers. Do not assume interchangeability with generic headers due to specific snap-together mechanical locking requirements and precise pin spacing tolerances.
