TST12RB01T

Headers, Male Pins Overview

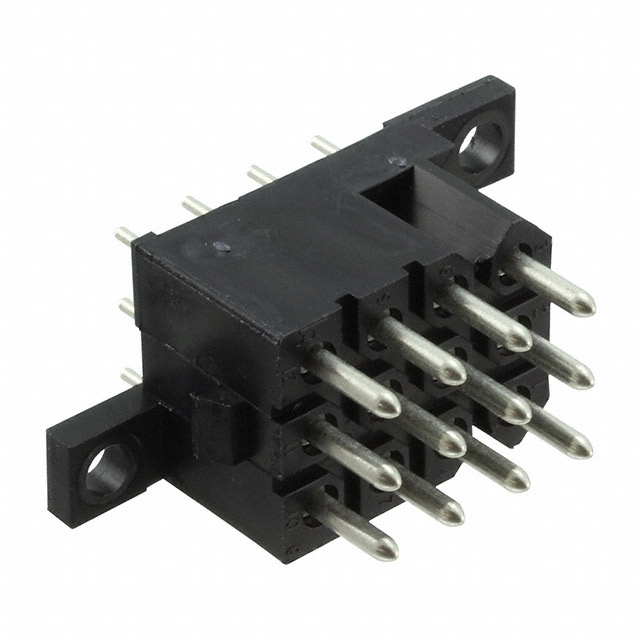

The ITT Cannon TST12RB01T is a Trident series rectangular power connector designed for through-hole PCB mounting. It features a 12-position header configuration with three rows and a 5.08 mm pitch. Rated for 13 A current and 250 V AC, the plug utilizes tin-plated male pin contacts. The housing is constructed from nylon, supporting operation between -55°C and 105°C.

Headers, Male Pins Feature Summary

• Snap-together modular design for low installed cost
• High-density three-row arrangement
• Robust nylon housing construction

Headers, Male Pins Applications

• Industrial automation systems
• Commercial aviation avionics
• Defense electronic equipment
• Medical device interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number against official ITT Cannon documentation to confirm contact orientation and plating specifications. Ensure compatibility with mating receptacles within the Trident series. Confirm RoHS compliance status if required by project regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when high-density board-level connections are required in harsh environments. The 5.08 mm pitch accommodates higher current loads compared to finer pitches. Verify that the through-hole mounting style aligns with the target PCB assembly process and mechanical constraints.

Headers, Male Pins Part Context

This connector belongs to the Trident Snap Together (TST) family, engineered for versatile interconnect solutions across aerospace, defense, and industrial markets. The series provides reliable performance for mission-critical applications requiring robust electrical connections and environmental resistance.

Headers, Male Pins Replacement Considerations

Direct substitutes include other ITT Cannon Trident series headers with identical 12-pin, 3-row configurations and 5.08 mm pitch. Cross-brand replacements require matching current ratings, voltage limits, and physical dimensions.
