TST12RB01Z

Headers, Male Pins Overview

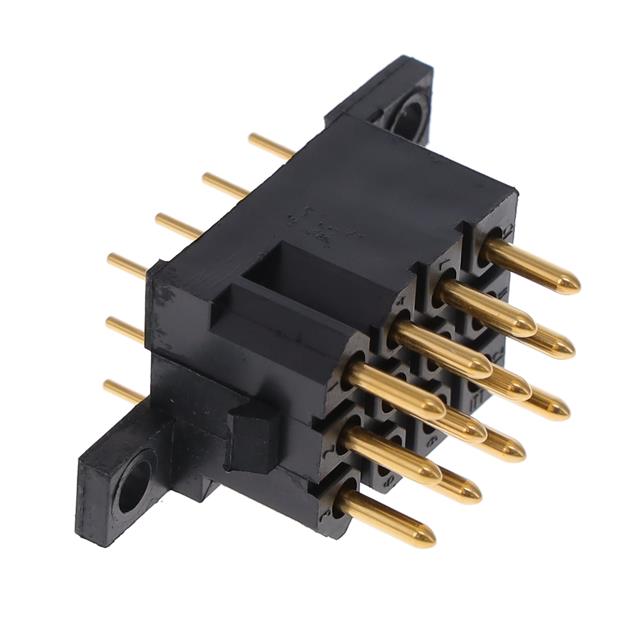

The TST12RB01Z is a rectangular board-to-board connector manufactured by ITT Cannon, LLC. It features a 12-position configuration arranged in four rows with male pin contacts. The component supports through-hole termination for PCB mounting and includes a mounting flange for secure installation. It is rated for up to 13 A current and 250 V AC voltage. The operating temperature range spans from -40°C to 105°C.

Headers, Male Pins Feature Summary

• Features a mounting flange for secure mechanical attachment during installation.
• Supports through-hole termination for reliable PCB integration.
• Designed for board-to-cable or board-to-board interconnect applications.

Headers, Male Pins Applications

• Board level interconnect systems
• Rectangular connector assemblies requiring snap-together design
• Applications needing low installed cost solutions

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against official ITT Cannon documentation to confirm material composition and environmental ratings. Ensure the selected variant matches the required 12-position, 4-row configuration and through-hole termination type. Cross-reference part numbers carefully as suffixes often denote critical differences in plating or housing material that affect performance in harsh environments.

Headers, Male Pins Selection Notes

Select this component when a rectangular connector with a mounting flange is required for through-hole PCB assembly. Consider the 13 A current rating and 250 V AC voltage limits for circuit design. The Trident Snap Together series offers low installed costs, making it suitable for high-volume production where mechanical stability via the flange is necessary.

Headers, Male Pins Part Context

This part belongs to the Trident Snap Together (TST) series of rectangular connectors from ITT Cannon. These connectors are engineered for low installed cost and high reliability in various industrial and commercial applications. The series typically supports currents up to 13 A and voltages up to 250 V AC, providing a robust solution for board-level interconnections.

Headers, Male Pins Replacement Considerations

Consult cross-reference tools for parametrically similar parts. Verify compatibility regarding position count, row configuration, termination style, and flange presence before substitution.

Headers, Male Pins FAQ

What is the contact configuration for the TST12RB01Z?

It has a 12-position configuration arranged in four rows with male pin contacts.

Does the TST12RB01Z include a mounting flange?

Yes, the component features a mounting flange for secure installation.
