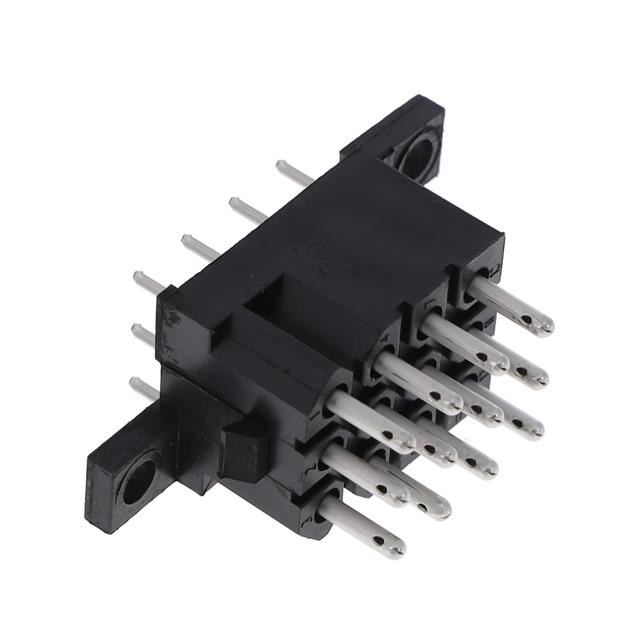

TST12RB05T is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists ITT Cannon, LLC. Its product description is CONN HEADER VERT 12POS 5.08MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for TST12RB05T
- Description：CONN HEADER VERT 12POS 5.08MM
- Series：Trident Rectangular
- Mfr：ITT Cannon, LLC
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Male Pin
- Pitch - Mating：0.200" (5.08mm)
- Number of Positions：12
- Number of Rows：4
- Row Spacing - Mating：0.200" (5.08mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.224" (5.70mm)
- Overall Contact Length：-
- Insulation Height：0.531" (13.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyamide (PA), Nylon
- Features：Mounting Flange
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：13A
- Voltage Rating：250V
Headers, Male Pins datasheet and documents for TST12RB05T
Headers, Male Pins Overview
The ITT Cannon TST12RB05T is a 12-position rectangular power connector from the Trident Snap Together (TST) series. It features a 5.08 mm pitch and is designed for through-hole PCB mounting in a straight orientation. The component operates within a temperature range of -55°C to +105°C and supports up to 13 A current at 250 V AC. It utilizes male pin contacts with tin plating for reliable signal and power transmission.
Headers, Male Pins Feature Summary
- Snap-together modular design for low installed cost
- Through-hole termination for secure PCB attachment
- Tin-plated male pin contacts
Headers, Male Pins Applications
- General electronic interconnects
- Industrial control systems
- Commercial equipment
Headers, Male Pins Procurement Notes
Verify the specific ordering suffix against official ITT Cannon documentation to ensure correct contact configuration and termination style. Confirm that the selected variant matches the required pitch, row count, and mounting orientation for the target application. Cross-reference datasheets to validate environmental ratings and current carrying capacity before finalizing procurement.
Headers, Male Pins Selection Notes
Select this component when a 5.08 mm pitch header is required for through-hole assembly. Ensure the system voltage does not exceed 250 V AC and current requirements remain within the 13 A rating. Verify compatibility with mating sockets in the Trident series and confirm that the operating temperature range meets the environmental demands of the installation site.
Headers, Male Pins Part Context
This part belongs to the Trident Snap Together (TST) family, which provides rectangular interconnect solutions. The series is characterized by its modular construction and cost-effective installation. The TST12RB05T specifically represents a 12-way plug configuration designed for board-level connections.
Headers, Male Pins Replacement Considerations
Consult official ITT Cannon substitution guides for verified alternatives. Generic equivalents may differ in pitch, locking mechanism, or material specifications.
