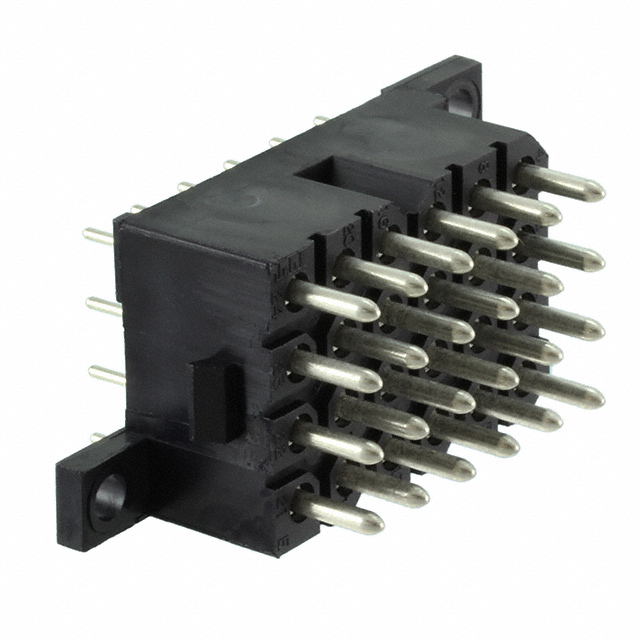

TST24RB01T is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists ITT Cannon, LLC. Its product description is CONN HEADER VERT 24POS 5.08MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for TST24RB01T
- Description：CONN HEADER VERT 24POS 5.08MM
- Series：Trident Rectangular
- Mfr：ITT Cannon, LLC
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Male Pin
- Pitch - Mating：0.200" (5.08mm)
- Number of Positions：24
- Number of Rows：4
- Row Spacing - Mating：0.200" (5.08mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.224" (5.70mm)
- Overall Contact Length：-
- Insulation Height：0.531" (13.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyamide (PA), Nylon
- Features：Mounting Flange
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：13A
- Voltage Rating：250V
Headers, Male Pins datasheet and documents for TST24RB01T
Headers, Male Pins Overview
The TST24RB01T is a Trident series PCB header manufactured by ITT Cannon. It features 24 positions with a 5.08 mm (0.200 inch) pitch. The connector is designed for through-hole mounting in a straight orientation. It supports operating voltages up to 250 V AC and carries a current rating of 13 A. The housing is constructed from nylon, and contacts are tin-plated copper alloy. This component belongs to the low-installed-cost rectangular power connector family.
Headers, Male Pins Feature Summary
- Snap-together design capability for efficient assembly
- Through-hole termination for secure PCB attachment
- Tin-plated contacts for reliable conductivity
Headers, Male Pins Applications
- General industrial control systems
- Commercial electronics assemblies
- Power distribution boards
Headers, Male Pins Procurement Notes
Verify the specific pin count and pitch against the schematic requirements before ordering. Confirm that the through-hole footprint matches the target PCB layout. Ensure the voltage and current ratings meet the circuit's operational demands. Check for any required mating accessories or complementary receptacle parts.
Headers, Male Pins Selection Notes
Select this part when a high-density, cost-effective solution is needed for board-to-board or wire-to-board connections. The 5.08 mm pitch allows for adequate spacing for higher currents. Consider the snap-together feature if panelization or rapid assembly is a priority for the manufacturing process.
Headers, Male Pins Part Context
This component is part of the Trident Snap Together series, which focuses on reducing installation costs. The series offers various contact counts and orientations. The TST24RB01T specifically provides a 24-position configuration suitable for applications requiring multiple signal or power lines in a compact rectangular form factor.
Headers, Male Pins Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Verify compatibility with mating connectors from the same Trident series before considering alternative manufacturers.
