TSUP15H100H

Single Diodes Overview

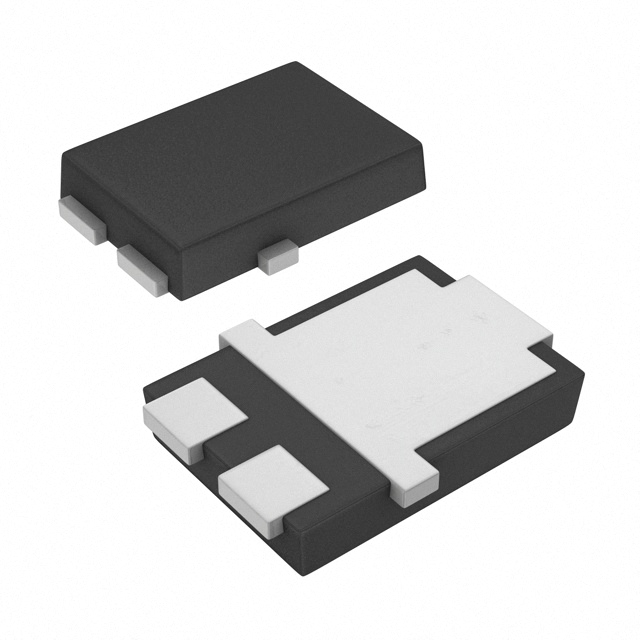

The TSUP15H100H is a single Schottky rectifier manufactured by Taiwan Semiconductor, designed for automotive applications. It features a 100 V repetitive reverse voltage and a 15 A average forward current rating. The device utilizes Trench Schottky technology to minimize switching losses and leakage current. It is housed in a TO-277A (SMPC4.6U) surface-mount package. The component operates within a temperature range of -55°C to +175°C and holds AEC-Q101 qualification.

Single Diodes Feature Summary

• Trench Schottky technology for low switching losses
• Automotive grade reliability with AEC-Q101 qualification
• High thermal efficiency in TO-277A package

Single Diodes Applications

• Switched mode power supplies
• High frequency DC to DC converters
• Automotive high frequency inverters

Single Diodes Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with Taiwan Semiconductor or authorized distributors before integration. Confirm that the TO-277A footprint matches your PCB design constraints. Ensure the AEC-Q101 qualification meets your specific automotive project requirements. Check for any recent product change notices affecting electrical parameters or packaging.

Single Diodes Selection Notes

Select this component when high current handling at 15 A is required in a compact SMD form factor. The TO-277A package offers superior thermal performance compared to smaller packages like DPAK. Consider the 100 V rating for systems operating near this voltage threshold. The AEC-Q101 certification makes it suitable for strict automotive environmental standards.

Single Diodes Part Context

This part belongs to Taiwan Semiconductor's automotive-grade Trench Schottky rectifier series. It complements lower current variants like the TSSW1H100H and higher density options. The series targets high-efficiency power conversion in demanding environments. The TO-277A package provides a balance between current capacity and board space.

Single Diodes Replacement Considerations

The STPST15H100SBYTR from STMicroelectronics is a comparable alternative in a DPAK package. Verify pinout compatibility and thermal resistance differences when substituting. Ensure the replacement maintains the required AEC-Q101 qualification level.
