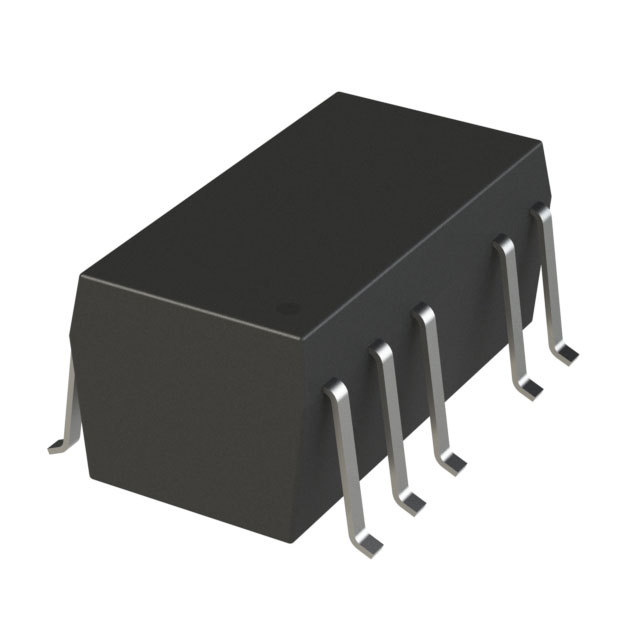

TSV 2415D

TSV 2415D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 900MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TSV 2415D

• Description：DC DC CONVERTER +/-15V 900MW
• Series：TSV (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：30mA, 30mA
• Power (Watts)：900 mW
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：80%
• Mounting Type：Surface Mount
• Package / Case：22-SMD Module, 10 Leads
• Size / Dimension：0.60" L x 0.31" W x 0.27" H (15.2mm x 8.0mm x 7.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TSV 2415D
