TSW-102-21-G-S

Headers, Male Pins Overview

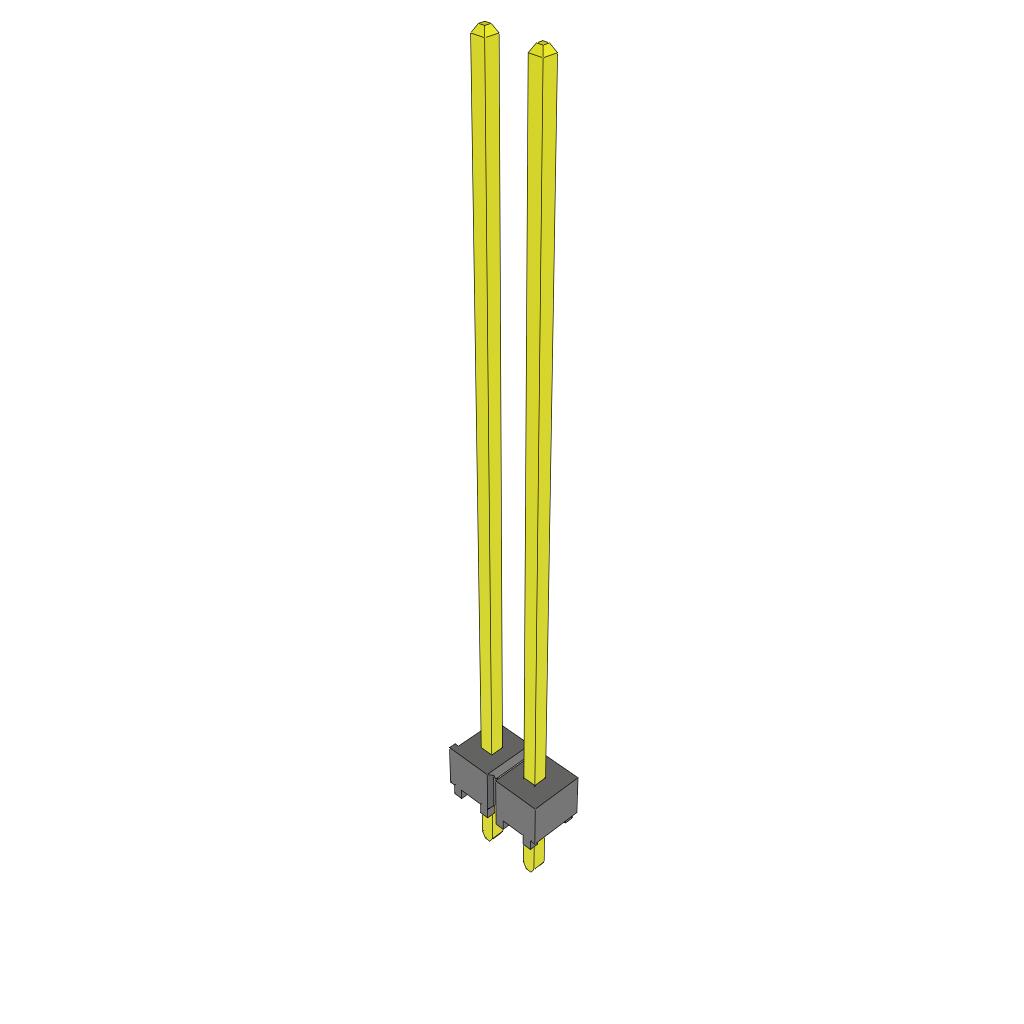

The Samtec TSW-102-21-G-S is a vertical through-hole pin header from the Classic TSW series. It features a 2-position, single-row configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Designed for board-to-board or cable applications, it operates within a temperature range of -55°C to +125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates standard PCB mounting configurations.
• Gold-plated phosphor bronze contacts ensure durable electrical connectivity.
• Cuttable strip design allows for flexible position customization.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic circuit prototyping

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and row configuration. Confirm that the through-hole termination style aligns with the target PCB manufacturing capabilities. Ensure environmental ratings meet operational requirements. Cross-reference manufacturer documentation for accurate mechanical dimensions and mating partner specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54mm pitch header is required for low-density connections. Consider the vertical profile for space-constrained layouts. Evaluate current carrying capacity against circuit demands. Compare against other TSW variants if different post lengths or insulation materials are necessary for specific thermal or mechanical constraints.

Headers, Male Pins Part Context

This connector belongs to Samtec's TSW series, which provides classic straight pin headers for general-purpose electronics. The series offers various positioning options and termination styles. These components are widely used in industrial and consumer electronics for reliable interconnection between printed circuit boards and cables.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TSW series headers with identical 2-position, single-row, and 2.54mm pitch specifications. Verify compatibility with mating sockets regarding contact length and insulation height. Alternative manufacturers may offer similar through-hole headers but require mechanical verification.
