TSW-103-06-F-D

Headers, Male Pins Overview

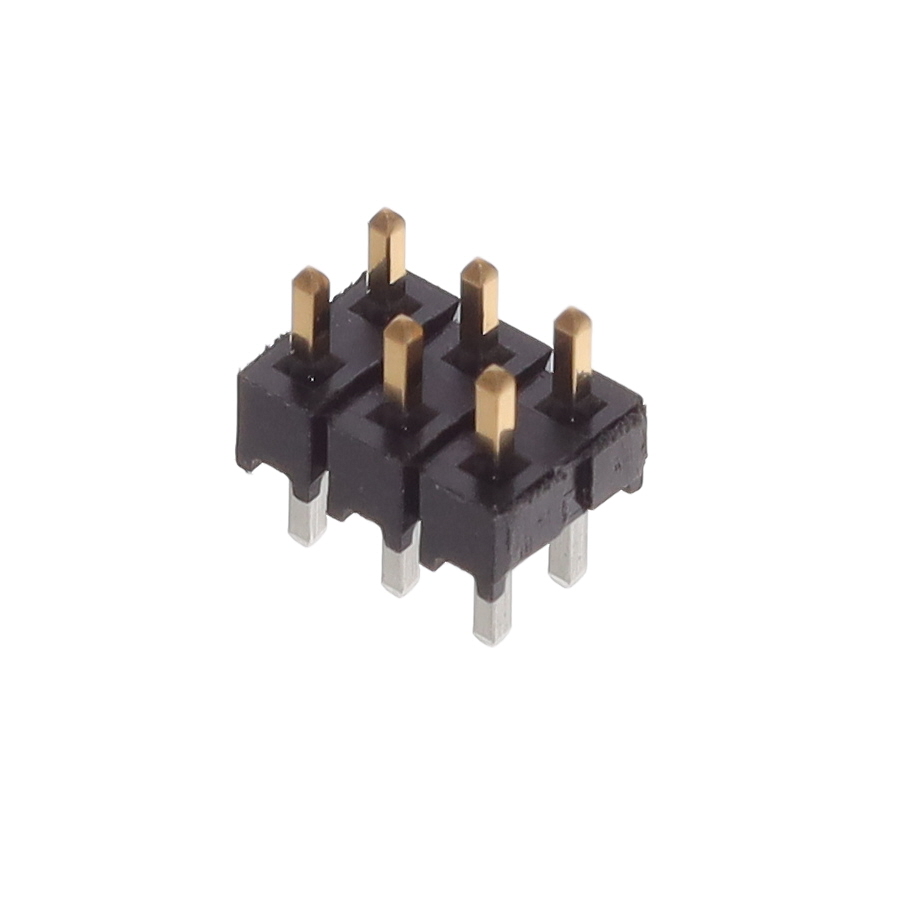

Samtec TSW-103-06-F-D is a vertical PCB header strip featuring six positions in a dual-row configuration. It utilizes a 2.54 mm (0.100 inch) contact spacing and employs phosphor bronze terminals with gold plating for reliable signal transmission. The connector supports through-hole mounting and offers a mating pin length of 30.99 mm (1.22 inches). Designed for board-to-board or cable applications, it operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual-row vertical pin header design for compact board-to-board interconnects
• Gold-plated phosphor bronze contacts ensure stable electrical performance
• Through-hole termination provides secure mechanical attachment to printed circuit boards

Headers, Male Pins Applications

• Board-to-board connections
• Cable assemblies
• General electronic equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm row count, position quantity, and termination style. Ensure compatibility with mating connectors regarding pin length and spacing. Check RoHS compliance status and moisture sensitivity level requirements for your assembly process before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row header is required for standard 2.54 mm pitch applications. Consider the total height and mating pin length to ensure adequate clearance. Verify that the current rating and voltage specifications meet the circuit requirements. Confirm that the through-hole mounting method aligns with the manufacturing capabilities of the target PCB.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of PCB header strips, offering a wide variety of configurations for general-purpose interconnect needs. This specific model belongs to the TSW-103 family, characterized by its standard 0.100-inch spacing and robust construction suitable for various industrial and commercial electronics applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Samtec TSW headers with identical 6-position, dual-row, 2.54 mm pitch specifications. Ensure any replacement matches the terminal material, plating thickness, and insulation material properties to maintain electrical and mechanical integrity.
