TSW-105-05-T-D

$0.73

Description：CONN HEADER VERT 10POS 2.54MM
Series：TSW
Mfr：Samtec Inc.
Package：Bulk

SKU:1b1edc665ca1 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSW-105-05-T-D is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 10POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSW-105-05-T-D

Description：CONN HEADER VERT 10POS 2.54MM
Series：TSW
Mfr：Samtec Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.105" (2.67mm)
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：0.335" (8.51mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polybutylene Terephthalate (PBT)
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSW-105-05-T-D

TSW-105-05-T-D

Headers, Male Pins Overview

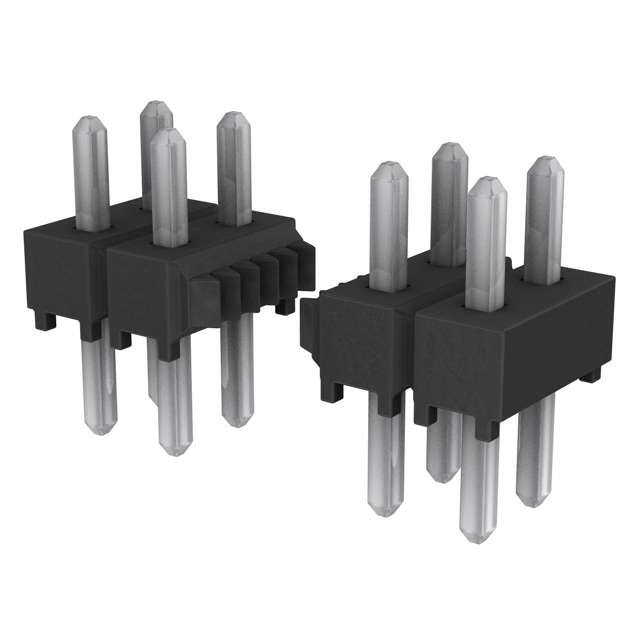

The Samtec TSW-105-05-T-D is a classic PCB header strip featuring a 2.54 mm (0.100 in) pitch and two rows of contacts. It provides ten positions for board-to-board or cable interconnections. The component utilizes phosphor bronze terminals with tin plating on both mating and tail sections. Designed for through-hole mounting, it operates within a temperature range of -55°C to 105°C. The housing is constructed from black Polybutylene Terephthalate (PBT) with a UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

Standard .025" square pin contact system for reliable mating
Flexible design options including various lead styles and termination types
Cuttable strip format allows for custom length configuration

Headers, Male Pins Applications

Board-to-board interconnection
Cable-to-board connections
General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix requirements against your design needs, as variations exist for different lead lengths and orientations. Confirm that the tin-plated contacts meet your corrosion resistance standards compared to gold-plated alternatives. Ensure the operating temperature range aligns with your environmental specifications before finalizing the procurement order.

Headers, Male Pins Selection Notes

Select this model when standard vertical through-hole headers are required without the need for extended stacking heights. Consider the TSW-105-G-D variant if higher conductivity or superior corrosion resistance is necessary for the application environment. Verify that the standard .025" pin size fits the mating connector receptacle dimensions accurately.

Headers, Male Pins Part Context

This component belongs to the TSW series of classic PCB header strips manufactured by Samtec. The series offers extensive flexibility with numerous terminal configurations and lead styles available. It serves as a foundational interconnect solution for standard spacing applications across various industrial electronics sectors.
