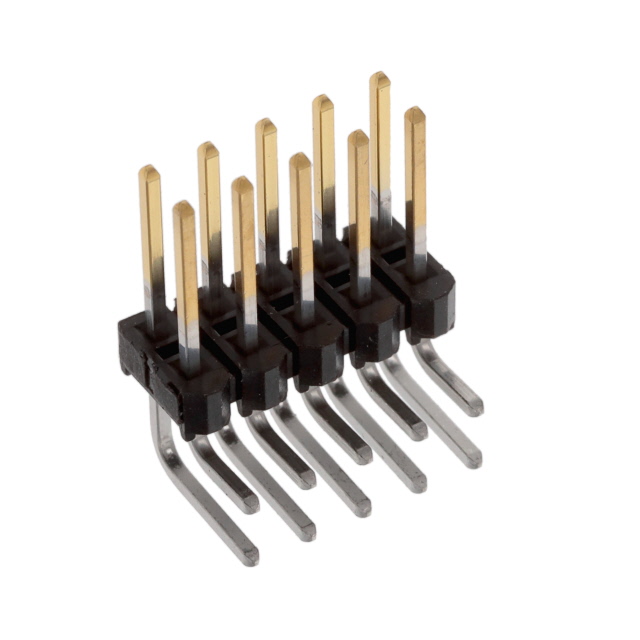

TSW-105-25-S-D-RA

Headers, Male Pins Overview

The TSW-105-25-S-D-RA is a board connector manufactured by Samtec Inc. It features 10 contact positions arranged in two rows, designed for male pin applications. The connector utilizes a right-angle mounting style with solder terminals for through-hole installation on printed circuit boards. The product is RoHS compliant and adheres to standard lead-free specifications.

Headers, Male Pins Feature Summary

• Right-angle configuration for space-efficient PCB layout
• Through-hole solder terminal connection method
• Dual-row male pin architecture

Headers, Male Pins Applications

• General-purpose board-to-board interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to ensure correct pitch and termination type. Confirm RoHS compliance status and material specifications directly from the manufacturer datasheet before integration into production designs.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header is required for low-current signal transmission. Ensure the PCB footprint matches the specified 0.100 inch (2.54mm) pitch dimensions. Validate mechanical clearance requirements for the right-angle profile during the design phase.

Headers, Male Pins Part Context

This part belongs to the TSW series of classic PCB head strips within the Samtec portfolio. It serves as a standard interconnect solution for various electronic assemblies requiring reliable through-hole connections.

Headers, Male Pins Replacement Considerations

Compatible alternatives include TSW-105-25-S-D-RA-006 and TSW-105-25-S-D-NA, provided mechanical and electrical specifications align with the original design requirements.
