TSW-109-09-T-S-RA

Headers, Male Pins Overview

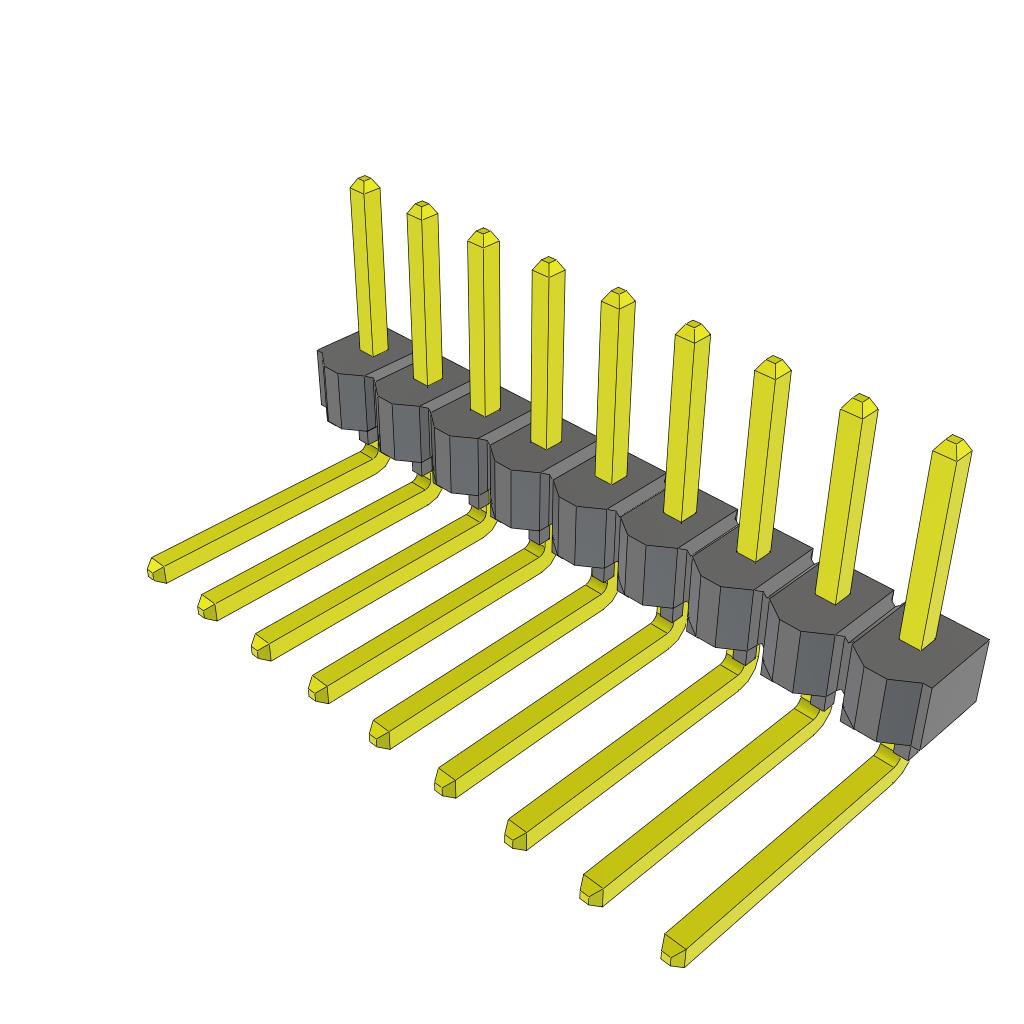

Samtec TSW-109-09-T-S-RA is a single-row PCB header strip with a 2.54 mm (0.100 inch) pitch and nine positions. It features right-angle through-hole termination for board-to-board or cable applications. The connector utilizes phosphor bronze contacts with matte tin plating, housed in black polybutylene terephthalate (PBT). It operates within a temperature range of -55°C to +105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact vertical mounting on printed circuit boards.
• Through-hole solder pin termination ensures secure mechanical attachment.
• Matte tin contact plating provides reliable conductivity and corrosion resistance.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact terminal length and plating specifications. Ensure the selected variant matches the required current rating and thermal environment for the target application. Cross-reference the part number with authorized distributors to confirm availability and compliance with regional regulatory requirements.

Headers, Male Pins Selection Notes

Select this component when a low-cost, standard pitch header is required for non-critical signal or power routing. The tin-plated contacts are suitable for general environments but may not be ideal for high-cycle mating applications compared to gold-plated variants. Consider the right-angle form factor for space-constrained designs requiring perpendicular board alignment.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of .100 inch pitch terminal strips. This model belongs to the standard TSW family, offering industry-leading design flexibility with various lead styles and pin configurations. It serves as a foundational interconnect solution for mass-market electronics manufacturing.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other single-row headers with identical 2.54 mm pitch and 9-position count. Verify that alternative parts match the right-angle orientation and through-hole termination style. Ensure the replacement maintains equivalent material properties, such as PBT insulation and phosphor bronze contacts, for mechanical and electrical compatibility.
