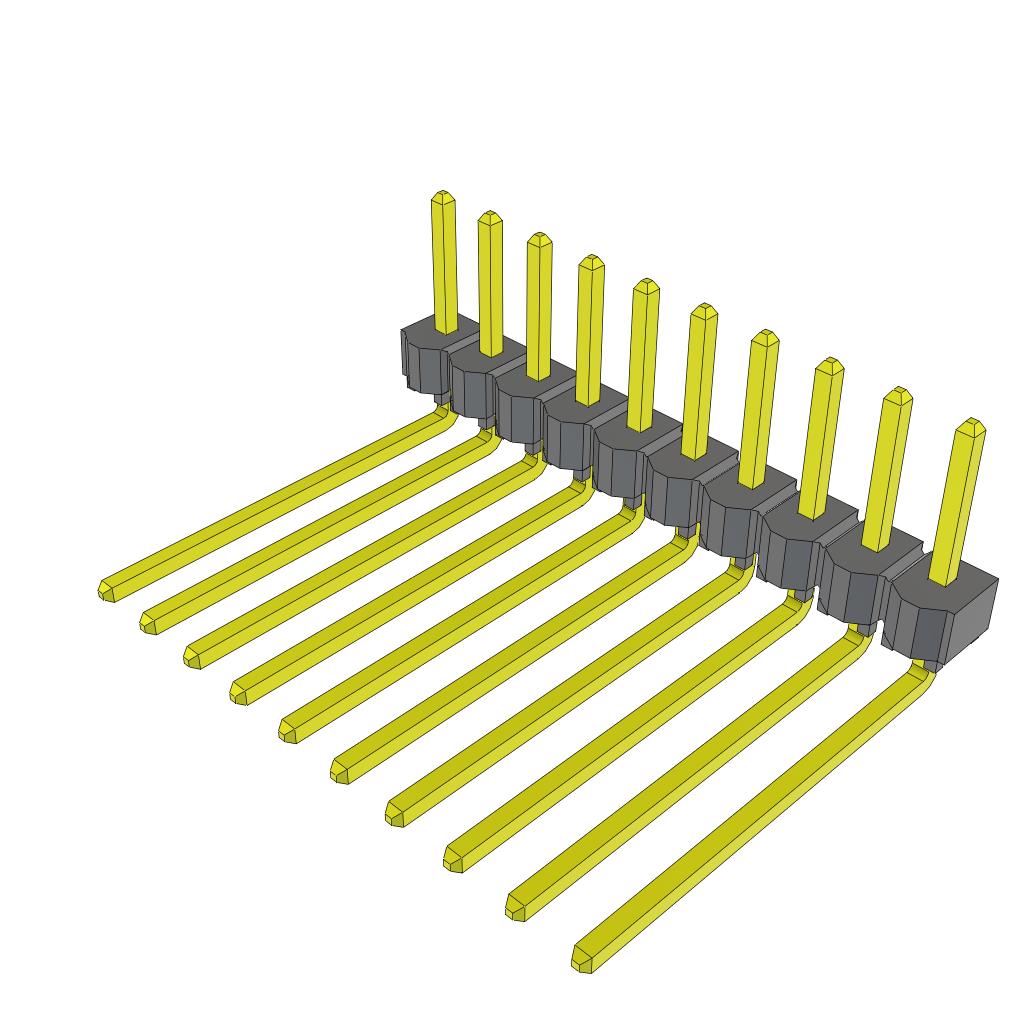

TSW-110-12-S-S-RA

$1.69

Description：CONN HEADER R/A 10POS 2.54MM
Series：TSW
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:014171c0abcd Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSW-110-12-S-S-RA is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER R/A 10POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSW-110-12-S-S-RA

Description：CONN HEADER R/A 10POS 2.54MM
Series：TSW
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：10
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.590" (14.99mm)
Overall Contact Length：-
Insulation Height：0.119" (3.02mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polybutylene Terephthalate (PBT)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSW-110-12-S-S-RA

TSW-110-12-S-S-RA

Headers, Male Pins Overview

The TSW-110-12-S-S-RA is a single-row male pin header manufactured by Samtec Inc. It features a 0.100 inch (2.54mm) pitch and provides 12 positions for board-to-board or cable connections. The connector utilizes through-hole right-angle termination with solder pins. Contact materials consist of phosphor bronze, featuring gold plating on the mating interface and tin plating on the tail. The housing is constructed from black polybutylene terephthalate (PBT) rated UL94 V-0. Electrical ratings include a voltage range of 400VAC to 550VAC and a current rating of 6.3A. The operating temperature spans from -55°C to 125°C.

Headers, Male Pins Feature Summary

Single-row configuration with cuttable design for flexible positioning
Right-angle through-hole mounting for compact PCB integration
Gold-plated mating contacts ensuring reliable signal transmission
Phosphor bronze construction providing mechanical durability

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm contact plating specifications and insulation material properties. Ensure that the required current and voltage ratings align with the application's electrical demands. Confirm compatibility with mating connectors regarding pin length and header height dimensions before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle male header is required for 2.54mm pitch applications. Consider the phosphor bronze material and gold plating for environments requiring robust conductivity. Evaluate the 6.3A current rating and 550VAC voltage limit against system requirements. Verify that the through-hole right-angle form factor fits within the available PCB space constraints.

Headers, Male Pins Part Context

This component belongs to the Samtec TSW series of classic PCB header strips. The series offers various row counts, pin configurations, and termination styles. The TSW-110-12-S-S-RA specifically represents a single-row variant with standard spacing, designed for general-purpose connectivity in electronic assemblies.
