TSW-113-14-T-D

Headers, Male Pins Overview

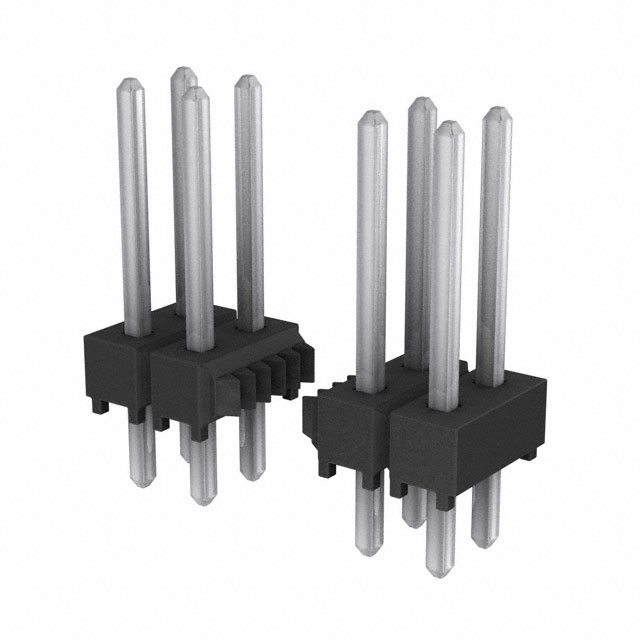

Samtec TSW-113-14-T-D is a classic PCB header strip featuring a 0.100 inch (2.54 mm) pitch with 26 positions arranged in two rows. It utilizes through-hole termination and tin-plated phosphor bronze contacts. The connector supports board-to-board or cable applications, operating within a temperature range of -55°C to +105°C. Rated at 550VAC and 5.2A per contact, it employs a PBT insulator with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Offers industrial design flexibility with extensive terminal length and configuration options for optimized performance.
• Features square .025 inch terminals compatible with standard assembly directions including vertical and right-angle mounting.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm plating type and terminal length variations. Ensure compatibility with existing PCB footprints and mating connector specifications. Confirm RoHS compliance status and moisture sensitivity levels prior to procurement integration into manufacturing workflows.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54mm pitch male header is required for reliable signal or power transmission. Consider the tin plating for cost-effective general use and verify that the 5.2A current rating meets circuit requirements. Evaluate mechanical stability needs against the through-hole mounting style.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of PCB header strips designed for high-volume production environments. This specific model belongs to the 113 series, indicating a standard height profile suitable for dense board layouts while maintaining robust electrical connectivity standards across various industrial sectors.

Headers, Male Pins Replacement Considerations

TSW-113-14-S-D offers similar physical dimensions but features gold plating instead of tin. Verify if the increased corrosion resistance justifies the material difference for your specific environmental conditions.

Headers, Male Pins FAQ

What is the maximum operating temperature for this connector?

The TSW-113-14-T-D operates reliably within a temperature range of -55°C to +105°C.

Is this connector suitable for right-angle mounting?

Yes, the TSW series supports both vertical and right-angle assembly orientations depending on the specific ordering configuration.
