TSW-115-20-L-D

Headers, Male Pins Overview

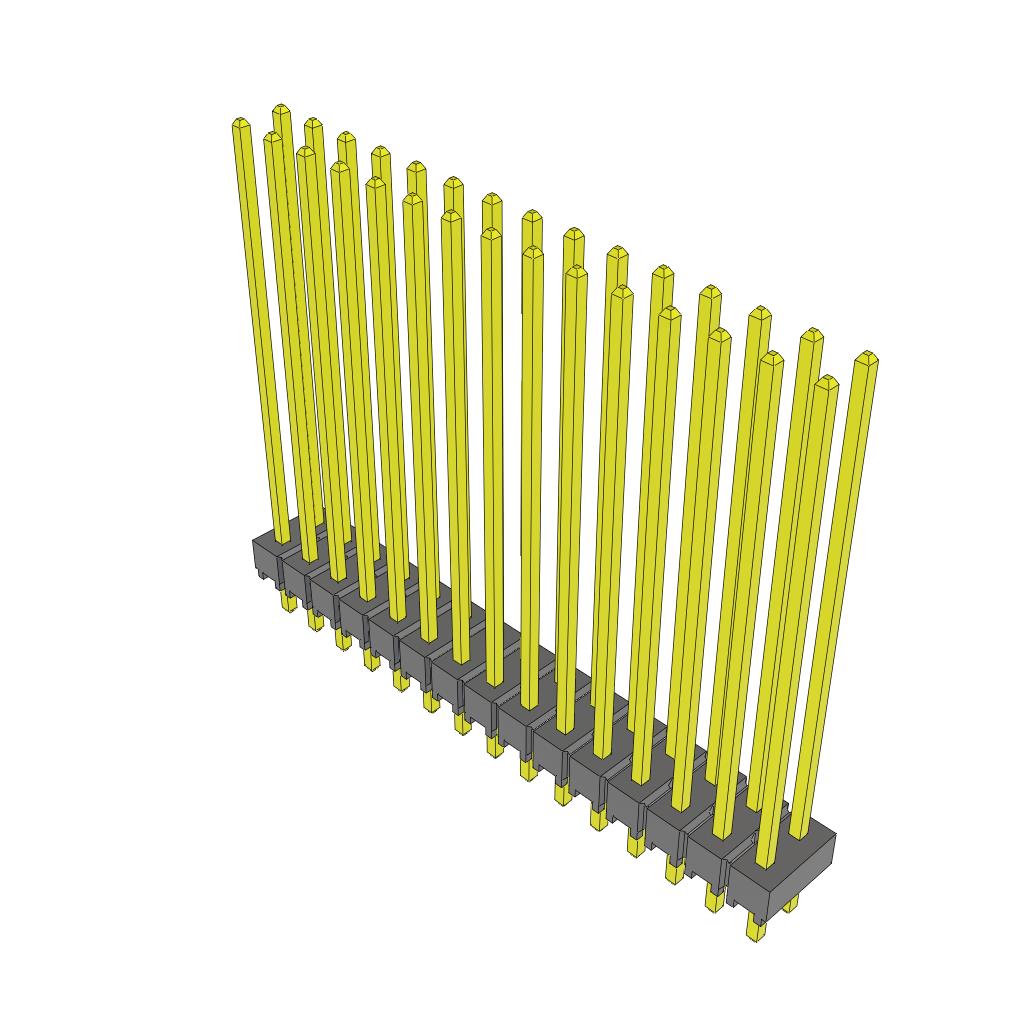

The TSW-115-20-L-D is a Samtec Classic PCB Header Strip featuring a 2.54 mm (0.1 in) pitch and 30 positions across two rows. Designed for through-hole mounting with straight installation, it utilizes phosphor bronze contacts with gold plating. The header supports board-to-board and cable applications within an operating temperature range of -55°C to +125°C. It employs a Polybutylene Terephthalate (PBT) housing rated UL 94 V-0. Electrical ratings include current capacities ranging from 4.3 A to 6.3 A and voltage ratings between 400 VAC and 550 VAC.

Headers, Male Pins Feature Summary

• Offers extensive design flexibility with various lead styles, plating options, and terminal configurations.
• Features .025" (0.635 mm) square terminals optimized for cost and performance.
• Supports vertical and right-angle assembly orientations for diverse layout requirements.

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable connections
• General purpose circuit integration

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact contact length and plating thickness specifications. Ensure the selected variant matches the required mating height and thermal performance criteria for the target application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a standard 0.100 inch pitch header is required for through-hole PCB mounting. Consider the specific contact length needed for the mating interface and verify that the gold plating option meets the necessary conductivity and corrosion resistance standards for the intended operational conditions.

Headers, Male Pins Part Context

This part belongs to the TSW series of Classic PCB Header Strips by Samtec. The series provides a wide selection of standard terminal counts, post lengths, and configuration options. It is designed to elevate basic header strips through industrial-grade design flexibility and robust construction suitable for reliable electronic interconnects.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same family include TSW-115-20-G-D and TSW-115-20-T-D. Verify that alternative suffixes match the required contact material properties and dimensional tolerances for direct interchangeability.
