TSW-118-08-G-D-RA

Headers, Male Pins Overview

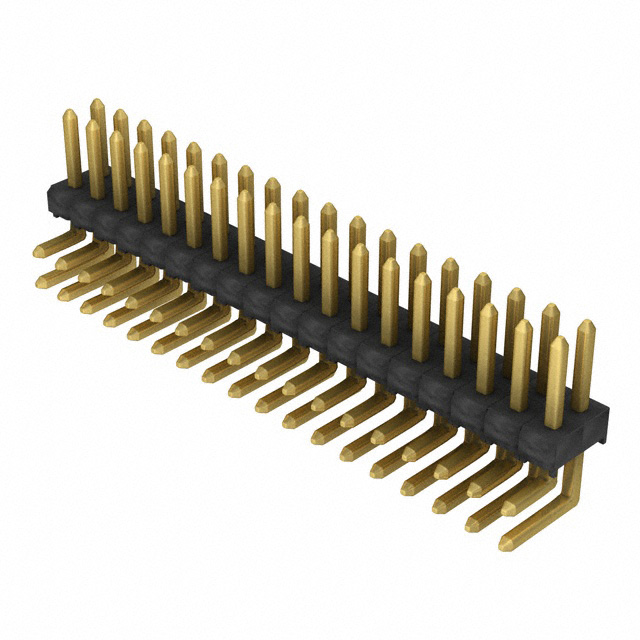

Samtec TSW-118-08-G-D-RA is a classic PCB header strip featuring 36 positions arranged in two rows with a 2.54 mm (0.1 in) pitch. Designed for right-angle through-hole mounting, it utilizes phosphor bronze contacts with gold plating. The connector supports board-to-board and cable applications within an operating temperature range of -55°C to +125°C. It meets UL 94 V-0 flammability standards and offers rated currents ranging from 4.3 A to 6.3 A depending on configuration.

Headers, Male Pins Feature Summary

• Provides industrial design flexibility with extensive options for lead styles, plating, and terminal configurations.
• Features .025 inch square pins optimized for reliable mating performance.
• Utilizes gold plating to enhance contact conductivity and corrosion resistance.

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable connections
• General purpose PCB headers

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm pin count, row configuration, and termination style. Ensure compatibility with mating connectors regarding pitch and height. Check RoHS compliance status and environmental ratings before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a standard 0.100 inch pitch header is required for rigid PCB assembly. Consider the right-angle orientation for space-constrained layouts. Evaluate current carrying capacity requirements against the specified rating range to ensure safe operation under thermal conditions.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of PCB header strips. This model belongs to the TSW family, which offers high density and reliability for general electronic interconnects. It serves as a fundamental component for establishing electrical pathways between circuit boards or cables in various consumer and industrial electronics.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 36-position, dual-row, right-angle form factor with identical 2.54 mm spacing. Verify that alternative components maintain the same gold-plated phosphor bronze contact material and through-hole solder termination to ensure mechanical and electrical interchangeability.
