TSW-122-08-T-S-RA

Headers, Male Pins Overview

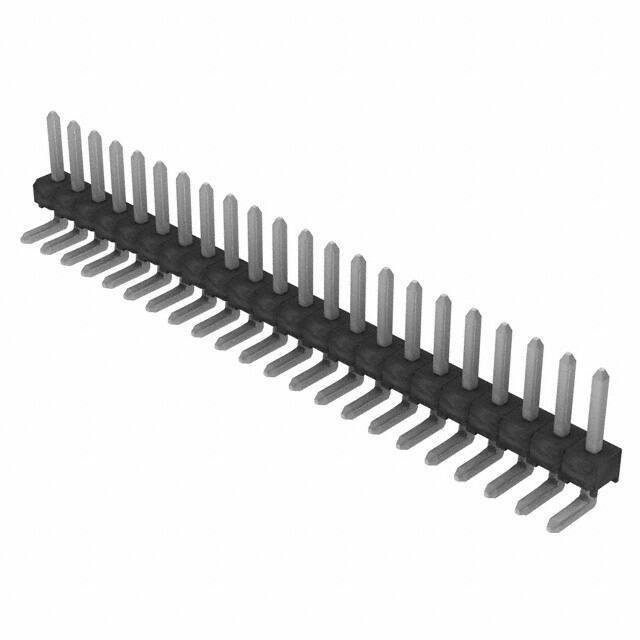

Samtec TSW-122-08-T-S-RA is a single-row PCB header strip with 22 positions and a 0.100 inch (2.54 mm) pitch. Designed for through-hole right-angle mounting, it features tin-plated phosphor bronze contacts and a black PBT insulation body rated UL94 V-0. The connector supports a temperature range of -55°C to +105°C and offers a mating contact length of 0.230 inches.

Headers, Male Pins Feature Summary

• Single-row configuration with standard 0.100 inch spacing
• Right-angle through-hole termination for board-to-board or cable applications
• Tin-plated phosphor bronze contacts ensure reliable conductivity
• PBT insulation housing provides UL94 V-0 flame resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact plating thickness and material specifications. Ensure the ordering part number matches the required row count and pin quantity. Cross-reference datasheets for thermal ratings and mechanical durability requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle header is required for standard 0.100 inch pitch systems. Consider the tin plating for general use and verify that the through-hole mounting style aligns with the target PCB design constraints and assembly processes.

Headers, Male Pins Part Context

This part belongs to the Samtec TSW Classic PCB Header Strips series. It is designed as a cuttable strip, allowing users to separate individual connectors from a longer rail based on specific circuit requirements. The series provides a versatile solution for various density and orientation needs in electronic manufacturing.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include TSW-122-08-F-D-RA and TSW-122-08-T-T-RA. Verify compatibility regarding row count, contact plating, and physical dimensions before substitution.
