TSW-125-14-F-D

Headers, Male Pins Overview

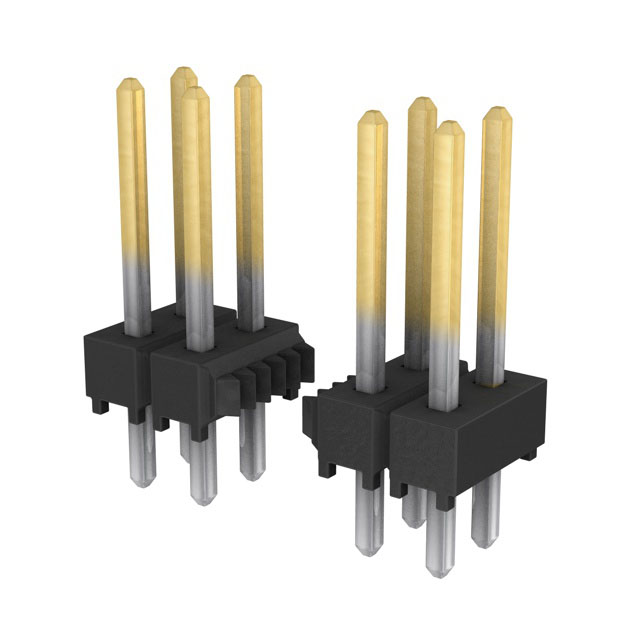

Samtec Inc. TSW-125-14-F-D is a vertical PCB header strip featuring a 0.100 inch (2.54 mm) contact spacing. This component provides 50 positions arranged in a dual row configuration with all pins loaded. It utilizes phosphor bronze contacts with gold plating on the mating interface and tin plating on the tail for soldering. The connector employs a push-pull locking mechanism and is designed for through-hole termination. The housing is constructed from black polybutylene terephthalate (PBT) material rated UL94 V-0. It operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Features a standard .025 inch square terminal system compatible with classic PCB header applications.
• Incorporates a push-pull locking style to ensure secure board-to-board or cable connections.
• Offers design flexibility with various lead styles, plating options, and terminal configurations.

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable-to-Board wiring
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact plating thicknesses and terminal lengths. Ensure the selected variant matches the required current rating and thermal performance for the target application environment. Cross-reference the datasheet for precise mechanical dimensions before finalizing the design.

Headers, Male Pins Selection Notes

Select this component when a dual-row, 0.100 inch pitch header with gold-plated contacts is required. Consider the physical height and locking mechanism requirements for the assembly. Verify compatibility with mating sockets or cables regarding pin count and row alignment. Check thermal and electrical ratings against system specifications.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of PCB header strips designed for high-density interconnects. These components are widely used in industrial and commercial electronics due to their reliable performance and extensive configurability. The TSW-125-14-F-D belongs to this established family, offering standardized dimensions and proven reliability for general-purpose connectivity needs.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified equivalent part numbers. Generic cross-references may not match critical parameters such as contact geometry, plating specifications, or locking mechanisms. Always validate mechanical fit and electrical characteristics with manufacturer data before substituting.
