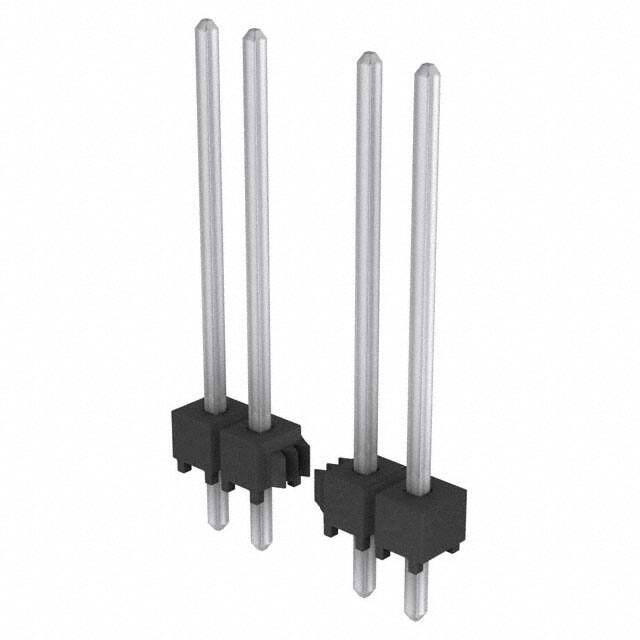

TSW-127-17-T-S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 27POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for TSW-127-17-T-S
- Description：CONN HEADER VERT 27POS 2.54MM
- Series：TSW
- Mfr：Samtec Inc.
- Package：Bulk,Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：27
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.620" (15.75mm)
- Contact Length - Post：0.110" (2.79mm)
- Overall Contact Length：0.830" (21.08mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polybutylene Terephthalate (PBT)
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for TSW-127-17-T-S
Headers, Male Pins Overview
The Samtec TSW-127-17-T-S is a single-row pin header from the Classic PCB Header Strips series. It features 27 positions with a 2.54 mm (0.1 in) pitch. Designed for through-hole mounting, it utilizes tin-plated phosphor bronze contacts and a black polybutylene terephthalate (PBT) insulator. The connector supports board-to-board and cable applications within an operating temperature range of -55°C to +105°C.
Headers, Male Pins Feature Summary
- Single-row configuration with 27 male pin positions
- Through-hole solder termination for secure PCB attachment
- Tin-plated phosphor bronze contacts for reliable conductivity
- UL 94 V-0 rated PBT insulation material
Headers, Male Pins Applications
- Board-to-Board interconnections
- Cable connections
- General purpose electronic assemblies
Headers, Male Pins Procurement Notes
Verify the specific ordering suffix against official Samtec documentation to confirm contact plating and row configuration. Ensure the selected variant matches the required current rating and voltage specifications for the target application environment. Cross-reference the Mouser or DigiKey part numbers to confirm availability and exact component attributes before finalizing procurement.
Headers, Male Pins Selection Notes
Select this component when a single-row, 27-position header is required for standard 0.100 inch spacing. The tin-plated finish offers cost-effective connectivity suitable for general-purpose applications. Consider the straight mounting style and through-hole termination method for robust mechanical stability in fixed assembly scenarios.
Headers, Male Pins Part Context
This part belongs to the TSW series of Classic PCB Header Strips by Samtec. These headers are widely used in electronics manufacturing for their standardized dimensions and reliable performance. The TSW-127-17-T-S specifically provides a compact solution for connecting circuits with moderate pin counts in space-constrained designs.
Headers, Male Pins FAQ
What is the contact material for this header?
The contacts are made of phosphor bronze with a tin plating finish.
Is this connector available in a double-row configuration?
No, the TSW-127-17-T-S is a single-row header. Double-row variants exist within the same series but have different model numbers.
