TSW-130-08-G-D

Headers, Male Pins Overview

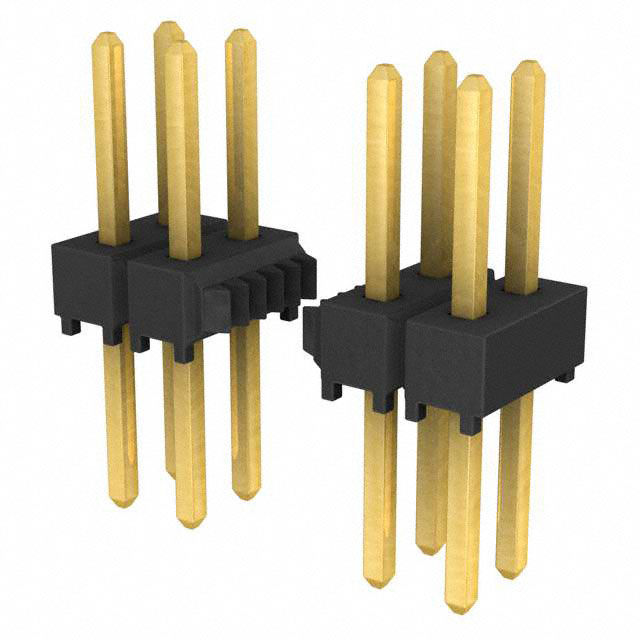

Samtec TSW-130-08-G-D is a classic PCB header strip featuring a 2.54 mm (0.1 in) pitch and 60 positions across two rows. Designed for through-hole mounting with straight installation, it utilizes gold-plated phosphor bronze male pins. The connector supports board-to-board and cable applications within an operating temperature range of -55°C to +125°C. It employs a Polybutylene Terephthalate (PBT) housing rated UL 94 V-0 for flammability. Electrical ratings include voltages up to 550 VAC and currents ranging from 4.3 A to 6.3 A depending on specific conditions.

Headers, Male Pins Feature Summary

• Features a standard 0.100-inch spacing suitable for general interconnect needs.
• Utilizes a robust PBT insulator material ensuring high thermal stability.
• Provides reliable electrical contact through gold-plated phosphor bronze terminals.

Headers, Male Pins Applications

• Board-to-Board connections
• Cable assemblies
• General purpose interconnects

Headers, Male Pins Procurement Notes

Verify the exact part number against official Samtec documentation before procurement. Confirm that the specific suffix matches your design requirements, as variations may exist. Ensure compatibility with your manufacturing processes regarding through-hole soldering profiles. Check current availability status directly with authorized distributors or the manufacturer, as supply chain fluctuations can affect delivery schedules. Always review the latest datasheet for any updates to mechanical dimensions or electrical ratings prior to finalizing orders.

Headers, Male Pins Selection Notes

Select this component when a standard 2-row, 60-position header is required for rigid PCB assembly. The straight pin configuration suits vertical mating scenarios. Consider the gold plating for corrosion resistance in non-severely harsh environments. Evaluate the current carrying capacity against your circuit load requirements. Ensure the board layout accommodates the specified footprint and height constraints associated with the through-hole termination style.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of PCB header strips, widely used in electronic assemblies. This specific model belongs to the standard height variant, offering a balance of mechanical stability and cost-effectiveness. It serves as a fundamental interconnect solution in various industrial and commercial electronics, providing a standardized interface for signal and power distribution between connected boards or cables.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public data. Verify cross-compatibility by matching pitch, row count, position count, and terminal length. Ensure alternative headers meet identical voltage and current ratings. Mechanical fit must be validated against existing PCB footprints and mating connector heights.
