TSW-130-23-T-S

Headers, Male Pins Overview

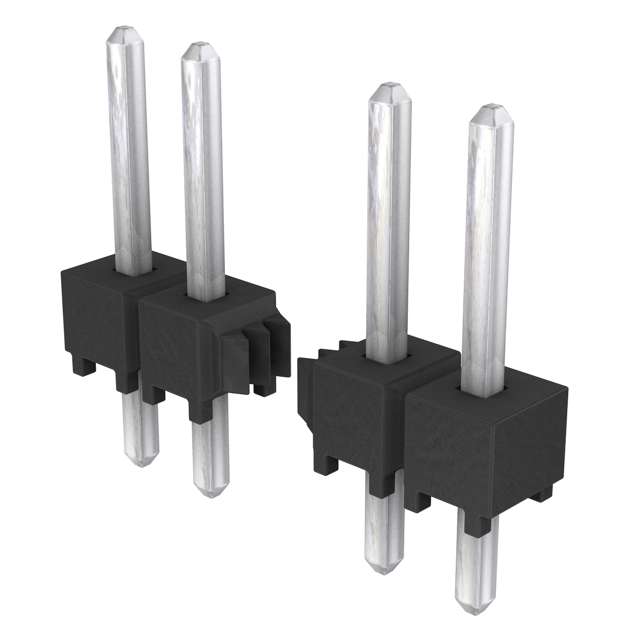

The TSW-130-23-T-S is a single-row PCB header strip from Samtec's TSW series, designed for through-hole mounting. It features 30 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes phosphor bronze contacts with tin plating on both the mating and tail sections. It operates within a temperature range of -55°C to +105°C and meets UL 94 V-0 flammability standards. The housing is constructed from polybutylene terephthalate (PBT).

Headers, Male Pins Feature Summary

• Standard 0.100 inch pitch design for classic PCB applications.
• Through-hole termination with straight pin configuration.
• Tin-plated phosphor bronze contacts for reliable signal transmission.
• UL 94 V-0 rated PBT insulation for thermal stability.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'T' indicates tin plating and 'S' denotes a single row configuration when sourcing replacements. Confirm that the 30-position count matches the design requirements. Ensure the through-hole footprint aligns with the target PCB layout. Check RoHS compliance status if required by the manufacturing environment. Validate operating temperature limits against system specifications.

Headers, Male Pins Selection Notes

Select this component for standard density interconnect needs requiring through-hole reliability. The single-row format simplifies routing compared to dual-row alternatives. Tin plating offers cost-effective performance for non-corrosive environments. Consider the 2.54 mm pitch compatibility with existing mating connectors. Evaluate mechanical strain relief requirements for cable applications.

Headers, Male Pins Part Context

This part belongs to the TSW (Traditional Socket & Wire) family, which provides versatile header solutions. The series supports various contact counts and plating options. It serves as a fundamental building block for electronic hardware designs requiring robust vertical or angled connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other TSW series headers with identical 30-position, single-row, tin-plated specifications. Verify pitch and row alignment before substitution. Cross-reference with MTSW or HMTSW variants only if height differences are acceptable.
