TSW-138-07-T-S

Headers, Male Pins Overview

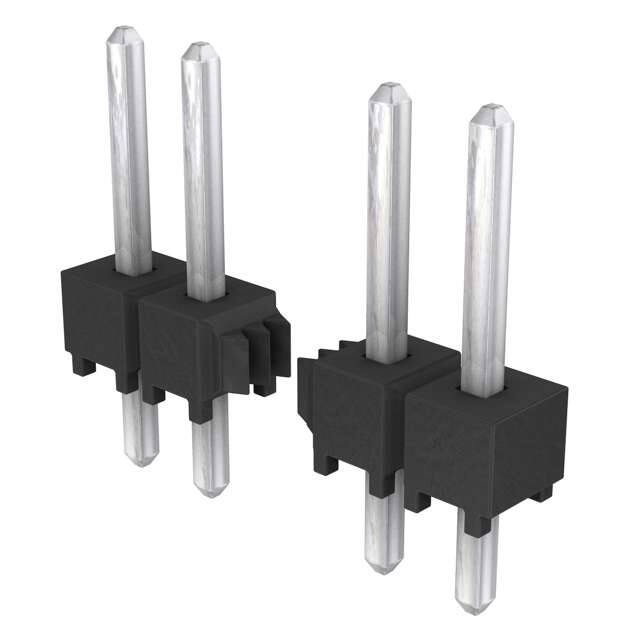

The Samtec TSW-138-07-T-S is a single-row through-hole header strip featuring 38 positions with a 0.100 inch (2.54 mm) pitch. It utilizes male pin contacts made of phosphor bronze with tin plating, designed for vertical board-to-board or cable connections. The connector supports an operating temperature range from -55°C to +105°C and employs a straight mounting angle with solder pin termination.

Headers, Male Pins Feature Summary

• Offers industry-standard pin counts and terminal lengths for flexible design integration
• Features square post contact systems optimized for reliable mating engagement
• Provides diverse plating options to balance cost efficiency and performance requirements

Headers, Male Pins Applications

• Board-to-Board interconnects
• Cable-to-Board connections
• General purpose PCB header applications

Headers, Male Pins Procurement Notes

Verify the specific part number configuration against official Samtec documentation to ensure correct pin count, row arrangement, and termination style match the design requirements. Confirm that the tin-plated contacts and through-hole mounting specifications align with the target assembly process and environmental conditions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a standard single-row male header with 0.100 inch spacing is required for through-hole mounting. Consider the tin plating for general use and verify that the 38-position length fits the available board space. Ensure the vertical orientation and straight mounting angle are compatible with the surrounding mechanical constraints and mating connector interface.

Headers, Male Pins Part Context

This component belongs to the TSW series of classic PCB header strips manufactured by Samtec Inc. The series is characterized by its extensive variety of standard pin configurations and lead styles, allowing designers to optimize both cost and performance. It serves as a fundamental interconnect solution within the broader family of rectangular connectors and wire housings offered by the manufacturer.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Samtec TSW series headers with identical 38-position counts and 0.100 inch pitch, such as TSW-138 variants with matching termination styles. Cross-reference official Samtec mate and related component lists to identify equivalent parts with similar electrical ratings and mechanical dimensions.
