TSW-148-14-S-D

Headers, Male Pins Overview

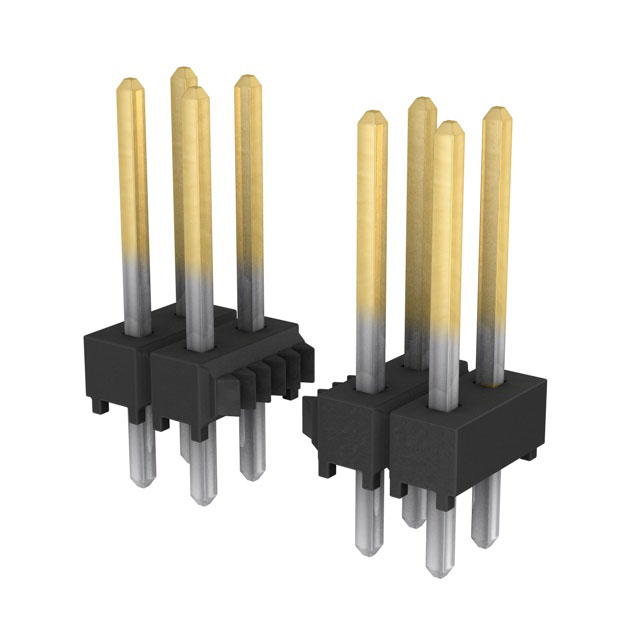

The Samtec TSW-148-14-S-D is a vertical PCB header strip featuring 96 positions arranged in a dual-row configuration. It utilizes a 2.54 mm (0.100 inch) pitch and is designed for through-hole termination with solder contacts. The connector employs phosphor bronze terminals plated with 0.76 µm of tin to ensure reliable electrical performance. Insulation is provided by Polybutylene Terephthalate (PBT), rated UL 94 V-0, supporting an operating temperature range from -55°C to +125°C. This component serves as a standard interconnection solution for board-to-board or cable applications within the TSW series.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting design for standard PCB assembly processes
• Dual-row header configuration providing high-density connectivity options
• Tin-plated phosphor bronze contacts optimized for general-purpose signal transmission

Headers, Male Pins Applications

• Board-to-board interconnections requiring vertical alignment
• Cable-to-board interface implementations
• General electronic equipment internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec datasheet to confirm terminal plating and insulation material specifications. Ensure the selected variant matches the required contact count and row configuration for the target PCB footprint. Cross-reference the MSL rating and storage conditions with assembly timeline requirements to maintain component integrity prior to soldering.

Headers, Male Pins Selection Notes

Select this component when a standard 0.100 inch pitch vertical header is required for through-hole mounting. Consider the tin-plated contact finish for cost-effective general-purpose applications where gold plating is unnecessary. Evaluate the thermal stability limits relative to the peak reflow temperatures of the manufacturing process to ensure insulation integrity during assembly.

Headers, Male Pins Part Context

This part belongs to the TSW (Traditional Socket Strip/Standard Header) family from Samtec, which offers extensive flexibility in pin counts and configurations. The TSW series is widely used in industrial and commercial electronics for its reliability and standardized dimensions. The TSW-148-14-S-D represents a specific high-pin-count variant within this established lineup, balancing density with mechanical robustness.

Headers, Male Pins Replacement Considerations

Compatible substitutes include TSW-148-14-T-D and TSW-148-14-L-D, which share identical mechanical dimensions and pin configurations but differ in contact plating materials.
