TSW-150-23-G-S

Headers, Male Pins Overview

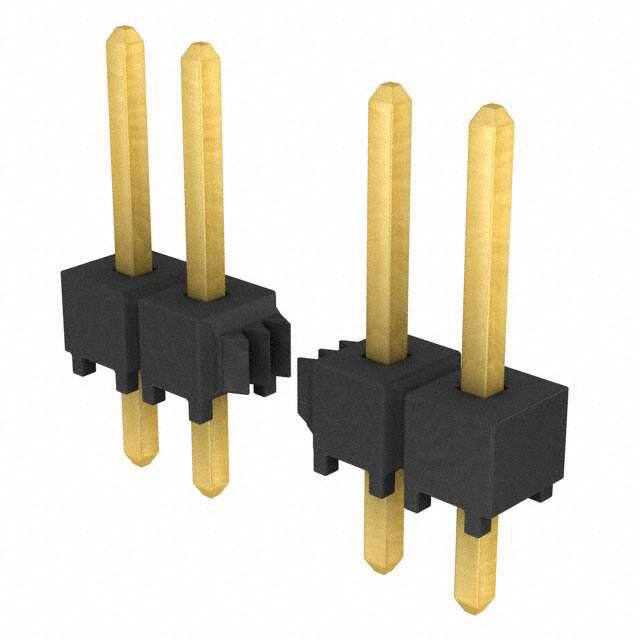

The Samtec TSW-150-23-G-S is a single-row PCB header strip featuring 50 positions with a 2.54 mm pitch. It utilizes through-hole termination and straight mounting orientation. The contacts are gold-plated phosphor bronze pins designed for reliable board-to-board or cable connections. The unit operates within a temperature range of -55°C to +125°C and employs a Polybutylene Terephthalate (PBT) housing rated UL 94 V-0.

Headers, Male Pins Feature Summary

• Features industry-leading design flexibility with numerous lead styles, plating options, and pin configurations.
• Utilizes .025 inch square post terminals for robust mechanical engagement.
• Offers multiple options to optimize cost and performance through varied platings and ruggedizing features.

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable assemblies
• General purpose electronic circuits

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm contact count, row configuration, and termination style. Ensure the required current rating and voltage specifications align with the application's electrical demands before procurement. Cross-reference the RoHS status and material composition with the latest datasheet to guarantee compliance with project requirements.

Headers, Male Pins Selection Notes

Select this component when a standard 0.100 inch pitch header is required for through-hole assembly. Consider the gold plating for enhanced corrosion resistance and conductivity. Evaluate the straight orientation against spatial constraints on the PCB layout. Confirm that the 50-position length fits the available board area without interfering with adjacent components.

Headers, Male Pins Part Context

This part belongs to the TSW series of Classic PCB Header Strips from Samtec. The series provides a wide variety of standard pin counts, terminal lengths, and options for classic 0.100 inch pitch applications. It represents a flexible solution for connecting printed circuit boards or cables using traditional through-hole soldering methods.

Headers, Male Pins Replacement Considerations

Compatible mates include Tiger Buy socket strips with PCB tails from the same manufacturer. Verify dimensional compatibility and electrical ratings when substituting with other 0.100 inch pitch headers. Ensure the replacement maintains the same row count and termination type for direct integration.
