TT49764E-TR

Overview

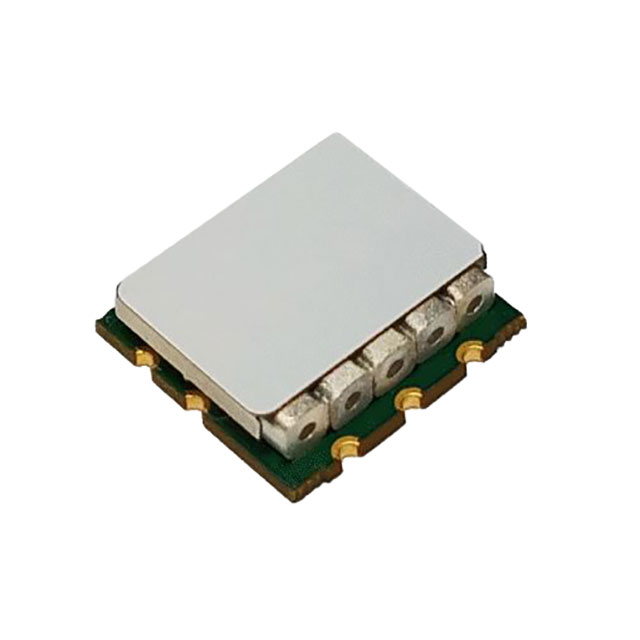

The TT49764E-TR is a ceramic bandpass filter manufactured by Skyworks Solutions Inc. It operates at a center frequency of 4.7 GHz with a bandwidth of 300 MHz and a nominal impedance of 50 Ohms. The component features an insertion loss of 2.1 dB and utilizes SMD/SMT surface mount technology for board mounting. It is available in Reel and Cut Tape packaging formats.

Feature Summary

• Utilizes ceramic construction for signal conditioning applications
• Designed as a bandpass filter for RF signal processing
• Supports surface mount installation on printed circuit boards

Applications

• RF front-end filtering
• Wireless communication systems
• Signal conditioning modules

Procurement Notes

Verify the current lifecycle status, as documentation indicates this part may be discontinued or subject to limited supply conditions. Confirm compatibility with existing design specifications before procurement. Check official manufacturer channels for end-of-life notices and alternative sourcing options due to potential availability constraints.

Selection Notes

Select this component for applications requiring a 4.7 GHz center frequency and 300 MHz bandwidth. Ensure the design supports 50 Ohm impedance matching. Verify that the SMD package dimensions fit the PCB layout constraints. Consider the insertion loss specification relative to system sensitivity requirements.

Part Context

This component belongs to the Skyworks Solutions Inc. family of ceramic filters and signal conditioning devices. It is categorized under RF filters designed for specific frequency bands. The product line focuses on providing reliable signal filtering solutions for wireless infrastructure and communication equipment using ceramic technology.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official datasheet or technical support for validated alternatives if this component is discontinued or unavailable.
