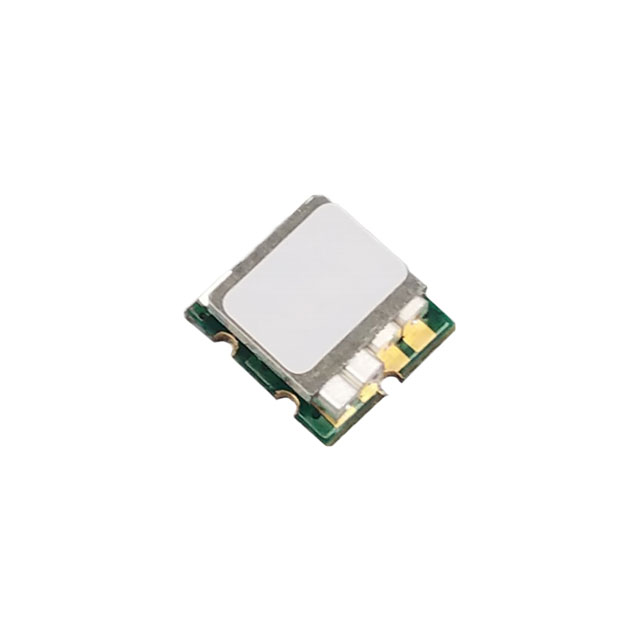

TT49778E-TR

$58.79

Description：FILTER,TT2P4-1227-1575-1620E-TR
Series：-
Mfr：Skyworks Solutions Inc.
Package：Cut Tape (CT)

SKU:47eadcc91427 Category: Ceramic Filters Brand: Skyworks Solutions Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER,TT2P4-1227-1575-1620E-TR
Series：-
Mfr：Skyworks Solutions Inc.
Package：Cut Tape (CT)
Frequency：1.277GHz, 1.575GHz
Impedance：-
Bandwidth：8 MHz
Insertion Loss：2dB
Filter Type：Band Pass
Mounting Type：Surface Mount
Package / Case：6-SMD Module
Size / Dimension：-
Height (Max)：0.128" (3.25mm)

Download product information

TT49778E-TR

Overview

The TT49778E-TR is a ceramic diplexer manufactured by Skyworks Solutions, Inc., designed for signal conditioning applications. It operates at frequencies of 1.227 GHz and 1.575 GHz with an impedance of 50 Ohms. The device features a bandwidth of 16 MHz and an insertion loss of 2 dB. It utilizes SMD/SMT mounting and is available in Reel or Cut Tape packaging.

Feature Summary

Dual-frequency operation supporting 1.227 GHz and 1.575 GHz bands
Ceramic construction for robust signal filtering
Surface mount design for board integration

Applications

GNSS receiver front-end filtering
Satellite navigation systems
Signal conditioning modules

Procurement Notes

Verify component status as the TT49778E-TR is listed as discontinued or last time buy by the manufacturer. Confirm availability through authorized distributors or secondary market sources. Ensure compatibility with existing PCB layouts and soldering profiles before procurement. Check RoHS compliance details if required for specific regulatory standards.

Selection Notes

Select this component for applications requiring simultaneous filtering at 1.227 GHz and 1.575 GHz. Consider the 50 Ohm impedance match for system integration. Evaluate the 2 dB insertion loss against link budget requirements. Verify that the surface mount package fits the designated footprint on the circuit board.

Part Context

This part belongs to Skyworks Solutions' SAW Diplexers product line under the Filters subcategory. It is classified as a Ceramic Diplexer intended for signal conditioning. The component is part of the broader portfolio of RF filters and multiplexers used in wireless infrastructure and mobile devices.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, alternative components must be sourced based on electrical equivalence and mechanical compatibility.
