TTSHC-202-D-15-455-GT-LF

Headers, Male Pins Overview

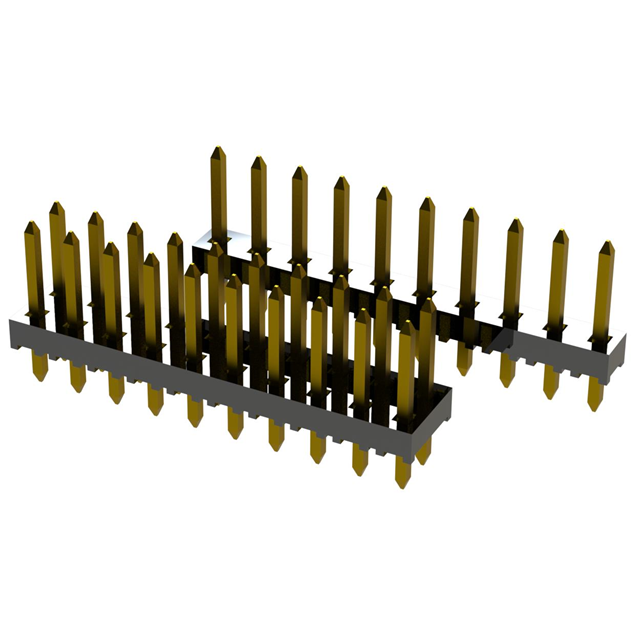

The TTSHC-202-D-15-455-GT-LF is a through-hole header connector manufactured by Major League Electronics. It features a dual-row configuration with four positions and a mating pitch of 0.079 inches (2.00 mm). The contacts are male pins finished with tin plating to ensure reliable conductivity. Constructed with polyamide insulation material, this unshrouded component is designed for solder termination on printed circuit boards. The series is UL approved and ISO 9001 certified, indicating adherence to quality standards.

Headers, Male Pins Feature Summary

• Dual-row through-hole header design
• Tin-plated male pin contacts
• Polyamide insulation construction

Headers, Male Pins Applications

• General electronic interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Major League Electronics documentation to confirm active status and exact specifications. Ensure compatibility with mating connectors regarding pitch and row spacing. Check for RoHS compliance requirements if applicable to your project constraints. Confirm packaging details such as bag quantity before ordering.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row connection is required for PCB mounting. The 2.00 mm pitch offers a balance between density and ease of handling. Tin plating provides standard corrosion resistance suitable for general environments. Consider the unshrouded design for applications where space is limited or side access is needed.

Headers, Male Pins Part Context

This part belongs to the TTSHC series of headers from Major League Electronics. The series typically includes various position counts and pitch options. The 'D' in the model indicates a dual-row configuration, while '202' specifies the four-position count. This series is widely used in industrial and commercial electronics for board-to-board or cable-to-board connections.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the same TTSHC series that may differ only in position count or length. Verify that any alternative connector matches the 2.00 mm pitch and dual-row layout. Ensure the replacement maintains the same contact finish and insulation material properties for equivalent performance.
